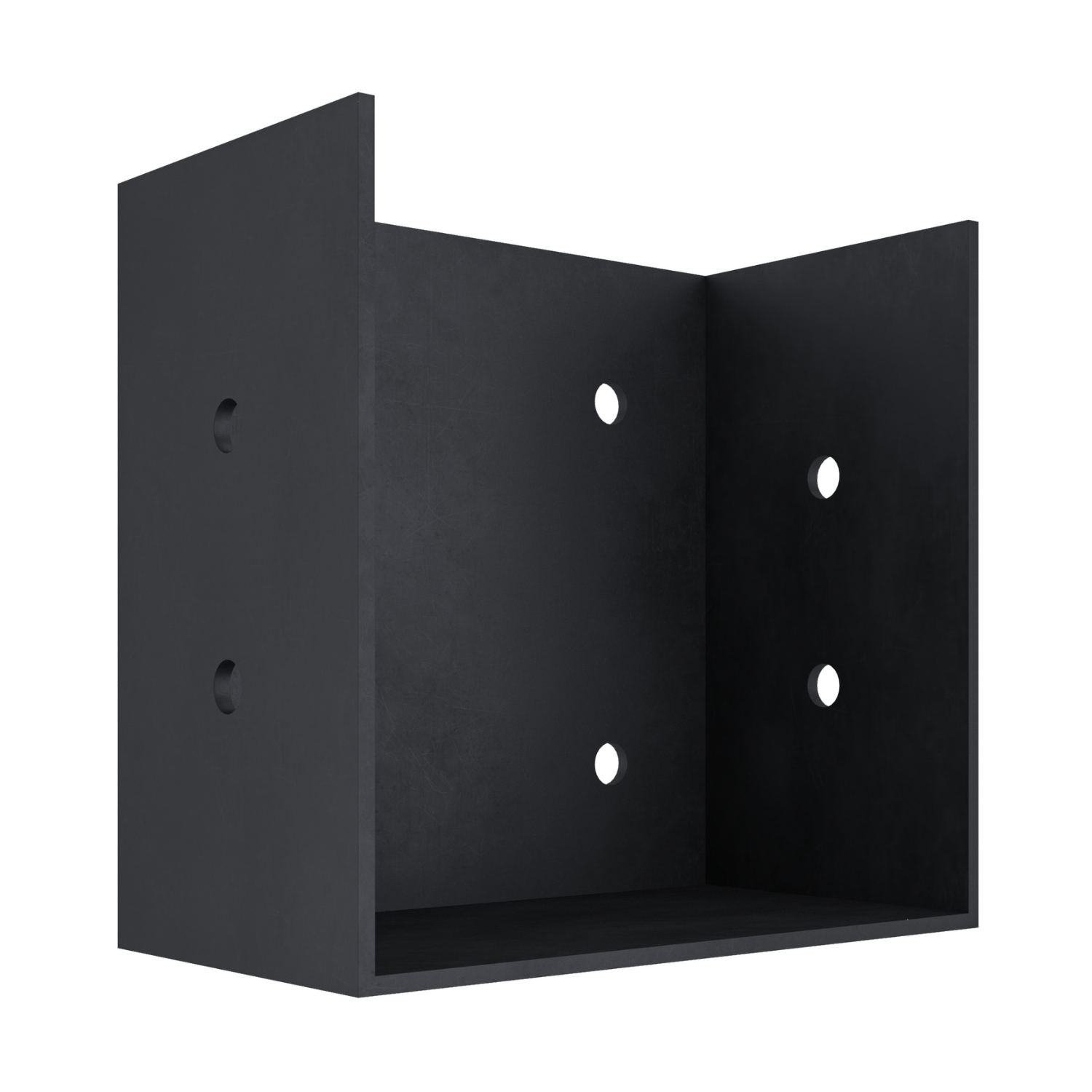

Zen Pergolas Pergola Insert Bracket for 4x4 Wood Posts, black steel bracket with screws
Pergola Insert Bracket (for 4x4 Wood Posts)
Pergola Insert Bracket (for 4x4 Wood Posts)
Pergola Insert Bracket (for 4x4 Wood Posts)
Pergola Insert Bracket (for 4x4 Wood Posts)
Pergola Insert Bracket (for 4x4 Wood Posts)

Vendor:Zen Pergolas

Pergola Insert Bracket (for 4x4 Wood Posts)

Sale price$19.00Regular price $24.00

Engineered for use with 4x4 wood posts, this pergola insert bracket allows you to insert a 4x4 post between two existing posts flush and inline. Constructed of laser-cut, bent, and welded 14-gauge premium steel with an advanced weather coating, it is built to endure outdoor conditions while simplifying your outdoor structure assembly. Each bracket includes pre-drilled holes and stainless steel screws for secure installation.

  • Fits dressed 4x4 lumber (3.5" x 3.5" actual size)
  • Open top sleeve design for post insertion after bracket installation
  • Pre-drilled holes for easy fastening with included screws
  • Highly weather-resistant with powder coating
  • Supports multiple outdoor builds like pergolas, privacy walls, and rails

Outdoor Structures Made Simple

Precision Fit for 4x4 Wood Posts

Technical Specifications

Exact Details and Fit

Brand or supplier
Zen Pergolas
Product type
Garden Arches, Trellises, Arbors & Pergolas
Material
Premium 14-gauge steel (~2.0mm thick)
Post fit
3.5 x 3.5 inches (dressed lumber 4x4)
Finish
Advanced weather coating
Weight
1.0 pound
Fasteners
Includes 1.5-inch #10 black painted self-tapping wood screws
Dimensions (W x D x H)
3.75 x 2.0 x 3.55 inches
Hole size
0.25 inch (ideal for #10 screws)
Mounting holes
4 on end plate, 4 on each side wall

What arrives

One Pergola Insert Bracket (for 4x4 Wood Posts) with stainless steel screws included unless otherwise stated.

Designed for Dressed Lumber

Built for Standard 4x4 Wood Posts

Confirm lumber size, layout, mounting surface, and required fasteners before using Pergola Insert Bracket (for 4x4 Wood Posts). Install according to the supplier's instructions and local structural requirements.

Actual Post Size: 3.5 x 3.5 inches

Compatible only with matching post or rafter sizes, layout type, fasteners, and installation surfaces. Check local codes and structural needs before building.

Always follow the manufacturer's care, use, and safety guidance.

Order with Confidence

Shipping and Returns

Shipping Details

Shipping rates and estimated delivery times are shown at checkout.

Returns and Warranty

Return requests are accepted within 30 days of delivery. Contact Resin Society first for damaged, defective, incorrect, or missing items and we will coordinate directly with Zen Pergolas.
Zen Pergolas Pergola Insert Bracket for 4x4 Wood Posts, black steel bracket with screws

Make space for gathering

A quiet black bracket that disappears into the structure while the evenings stretch longer under your pergola.

Between two posts

Hold the line

Open-top ease

Pergola builds stall where posts need to meet cleanly. The Pergola Insert Bracket (for 4x4 Wood Posts) sits between existing posts so a 4x4 drops in from above, keeping everything inline and flush. Pre‑drilled holes and included #10 stainless screws remove the guesswork, while the solid 14‑gauge form keeps edges crisp.

Calm, straight, and true

When structure is square, the rest of the project flows—rafters align, privacy walls read as one plane, and railings feel composed. Advanced weather coating keeps the look consistent season after season, so the focus stays on dinner lights and conversation, not on fittings. It’s the small, sturdy detail that lets an outdoor room feel finished.

For the hands-on host

Homeowners shaping a pergola, privacy wall, or side railing with standard 4x4 dressed lumber who want clean lines and minimal fuss.

Where it works

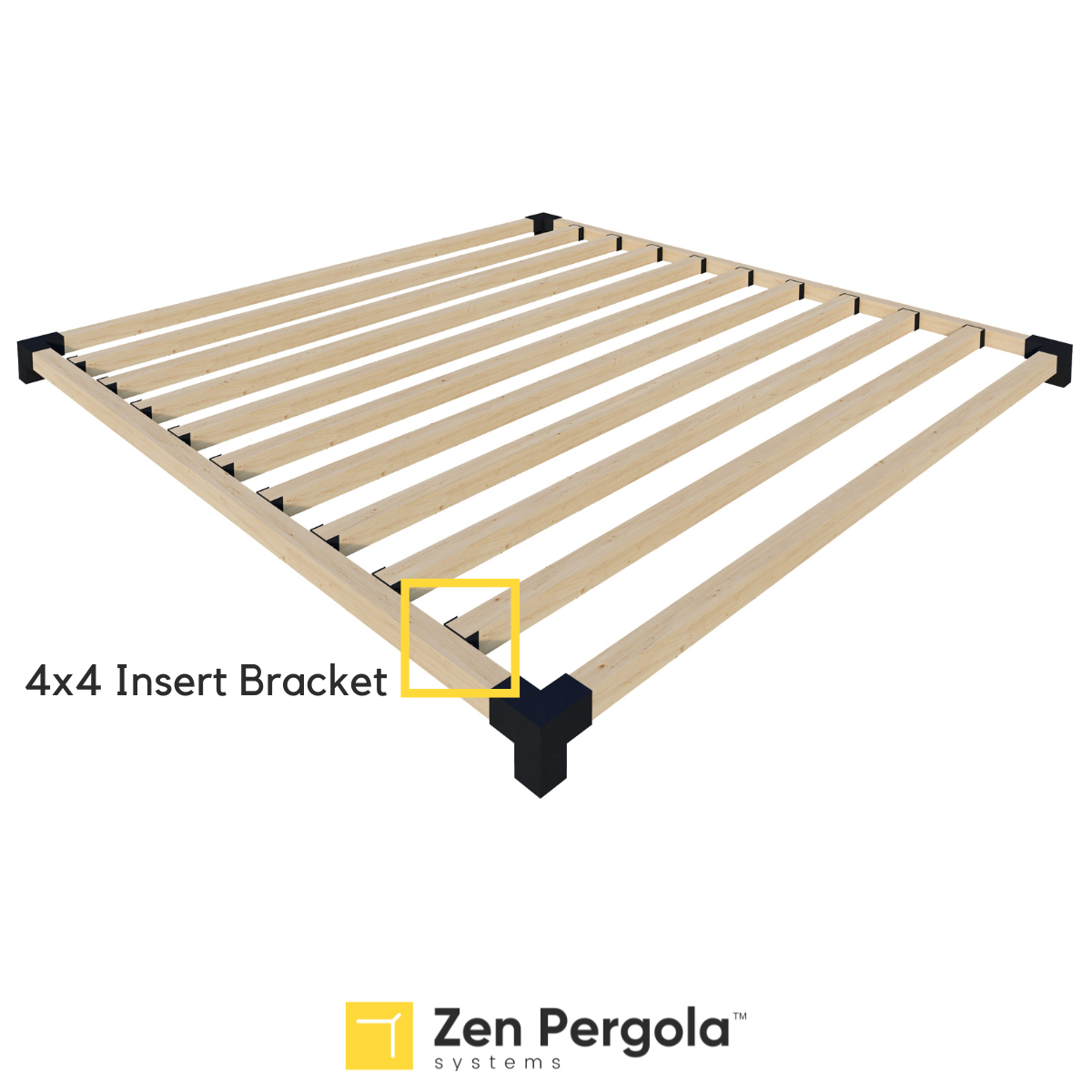

Secure the bracket to two existing wood posts, then drop a 4x4 in from the top to create an inline rafter, privacy panel, or railing section.
  • Pergolas
  • Outdoor builds
  • Post connections
  • Hammocks and swings
  • DIY structures
Zen Pergolas brand cover

About the Maker

Zen Pergolas: Focused on Outdoor Structure Hardware

Zen Pergolas supplies pergola brackets, outdoor structure hardware, and wood-post support pieces from Idaho Falls, ID, specializing in modern DIY pergolas designed for easy builds, clean style, and lasting comfort. Their parts are aimed at builders and homeowners who want to create a backyard retreat with straightforward components that simplify patio structures and garden-adjacent builds. If you’re planning a tidy outdoor wood project—whether a compact shade structure over a deck or a larger pergola for entertaining—Zen Pergolas focuses on practical hardware that lets quality design read through the details. These solutions make structural choices feel intentional and accessible, so the finished outdoor living space looks composed and performs reliably.
Explore Zen Pergolas
93trees planted to date

Your order gives back

When you buy from Resin Society, you help plant trees through our reforestation partnership. It is a small way your order supports the materials, homes, and landscapes makers care about.

Helpful Questions

FAQs

Will my 4x4 fit this bracket?
Yes—it's made for dressed 4x4 lumber, which measures 3.5 x 3.5 inches; the inner sleeve is approximately 3.6 x 3.5 inches.
Do I need to buy screws separately?
No. It includes 1.5-inch #10 stainless self‑tapping wood screws with black pan/round heads.
How is the post installed with this design?
The bracket mounts first to the existing posts, and the 4x4 drops in from the open top afterward.
What is it made of and how robust is it?
It’s formed from premium 14‑gauge steel and weighs about one pound, with pre‑drilled holes on the end plate and side walls.
Can it handle outdoor weather?
Yes. It features an advanced weather coating designed to withstand extreme conditions and is backed by a 5‑year warranty.
