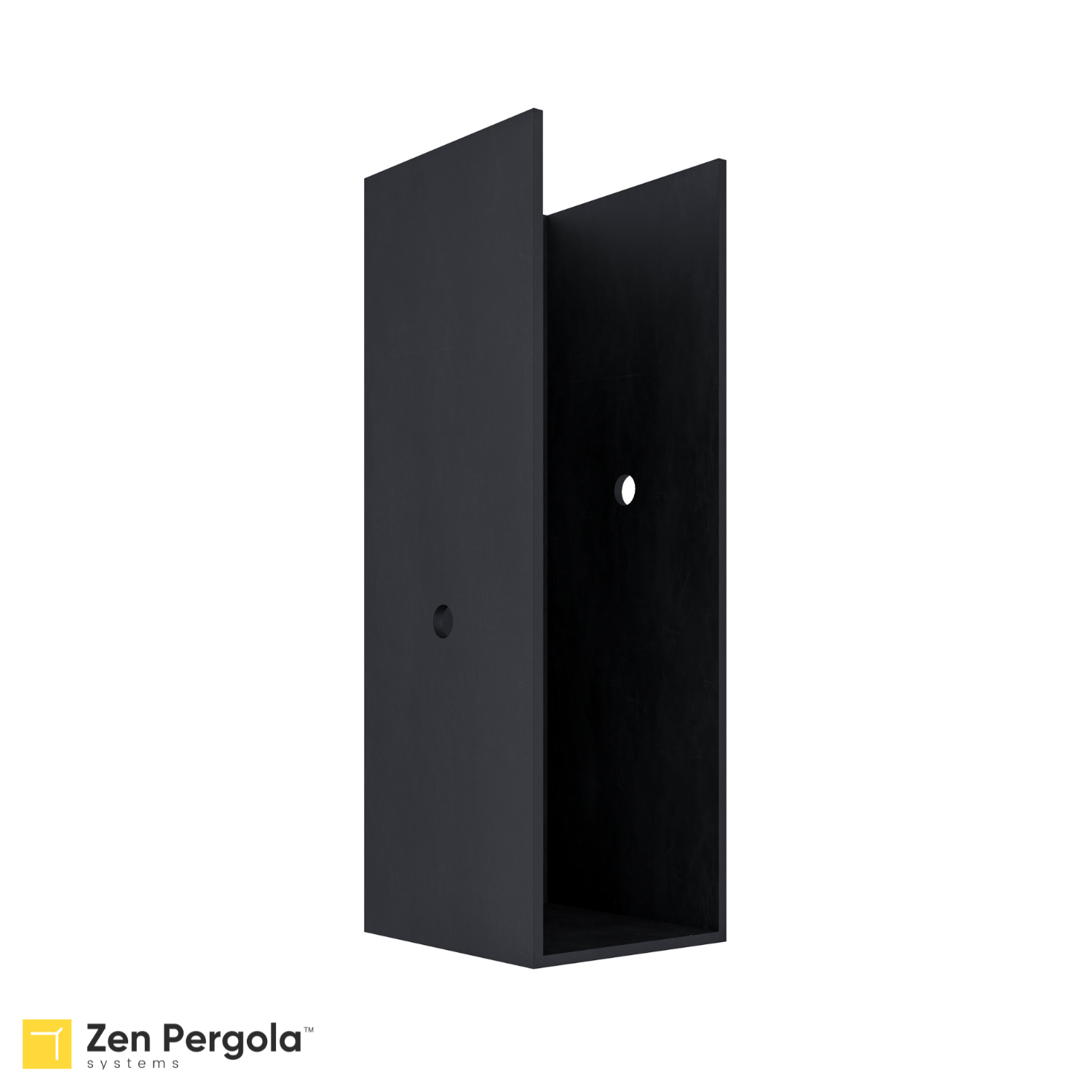

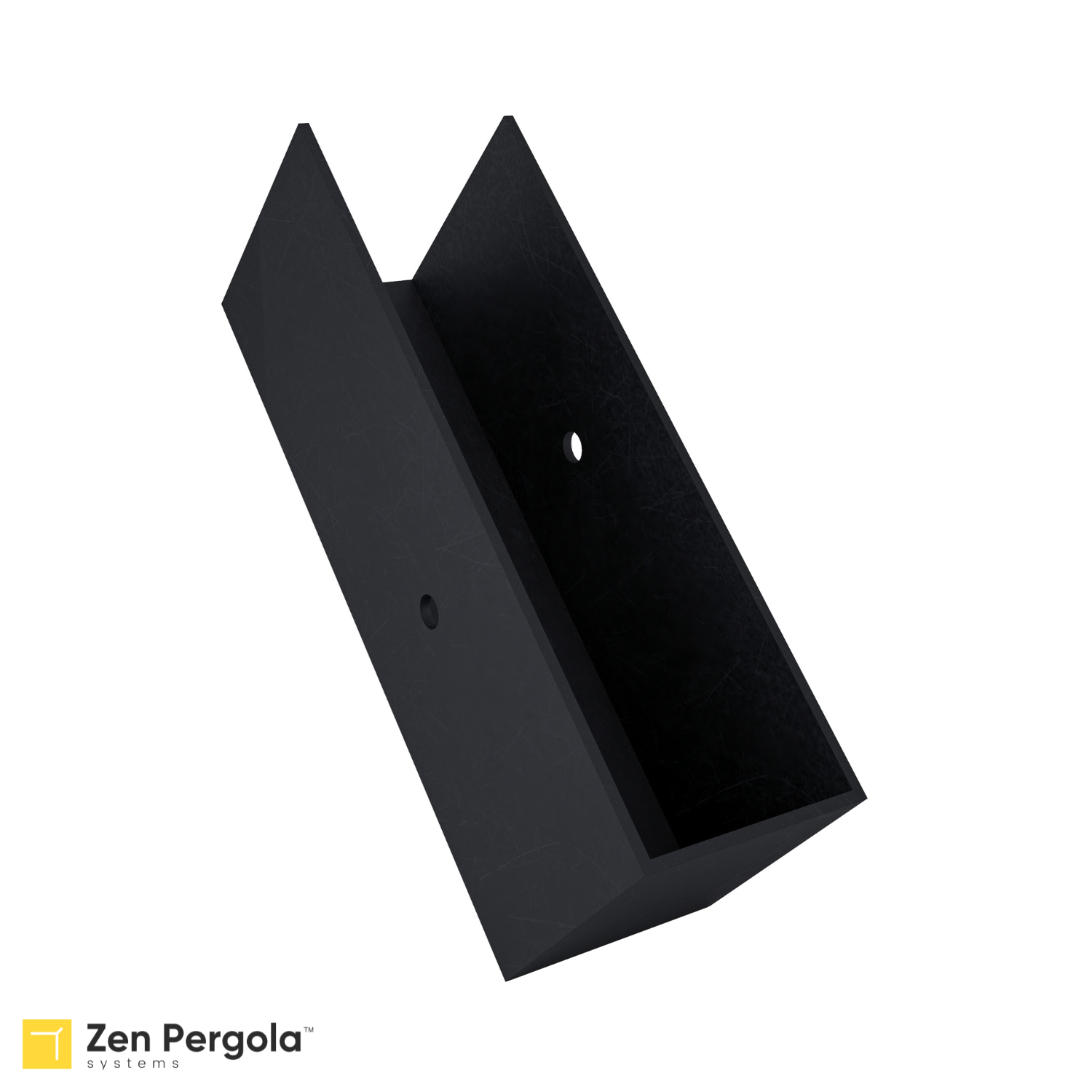

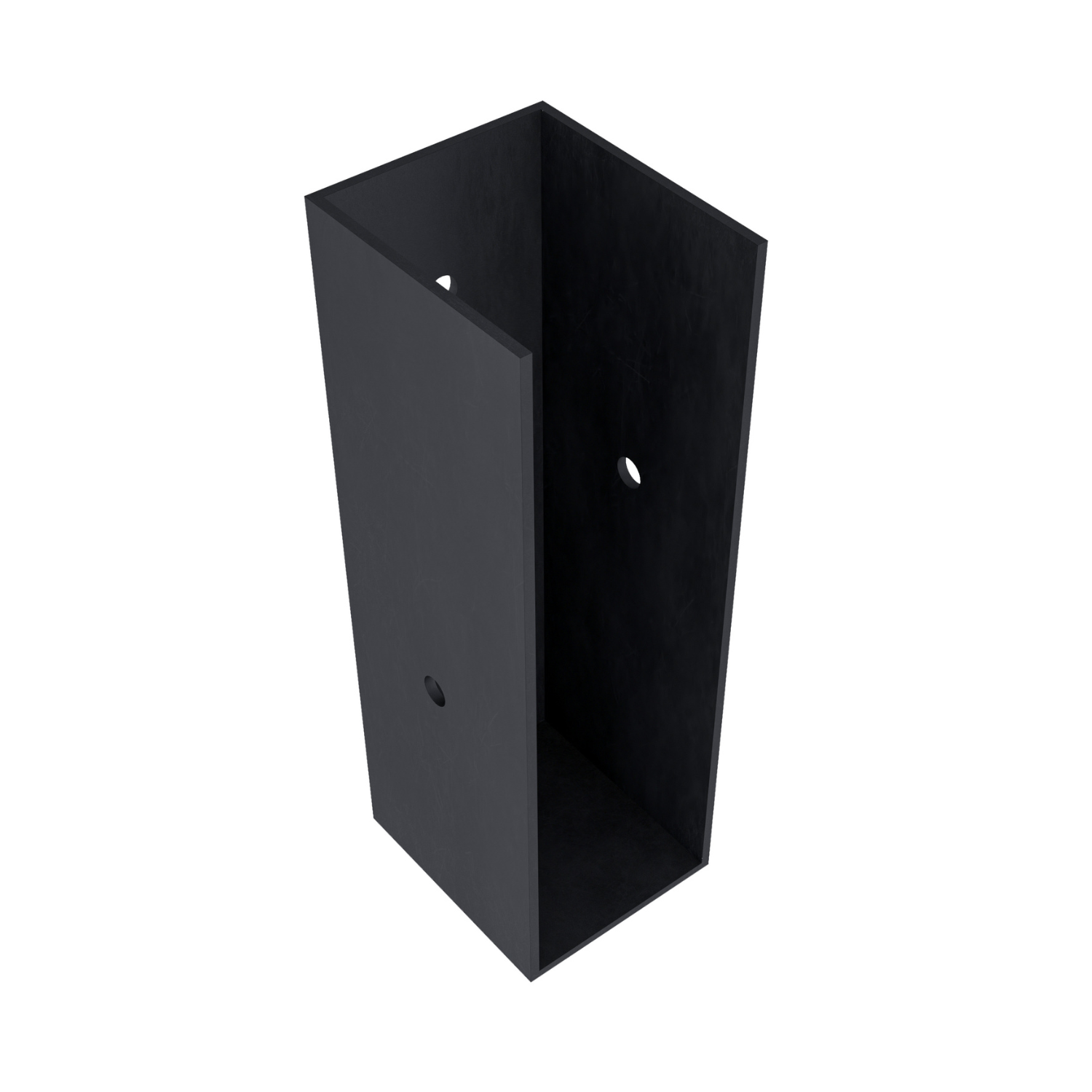

Pergola Insert Bracket (for 2x6 Wood Slats)

Usage

Insert brackets are used to insert wood slats (i.e. a 2x6) in between 2 existing wood posts such that the 2x6s are inline and "flush" with the posts. These brackets are extremely versatile and can be used in all of the following ways:

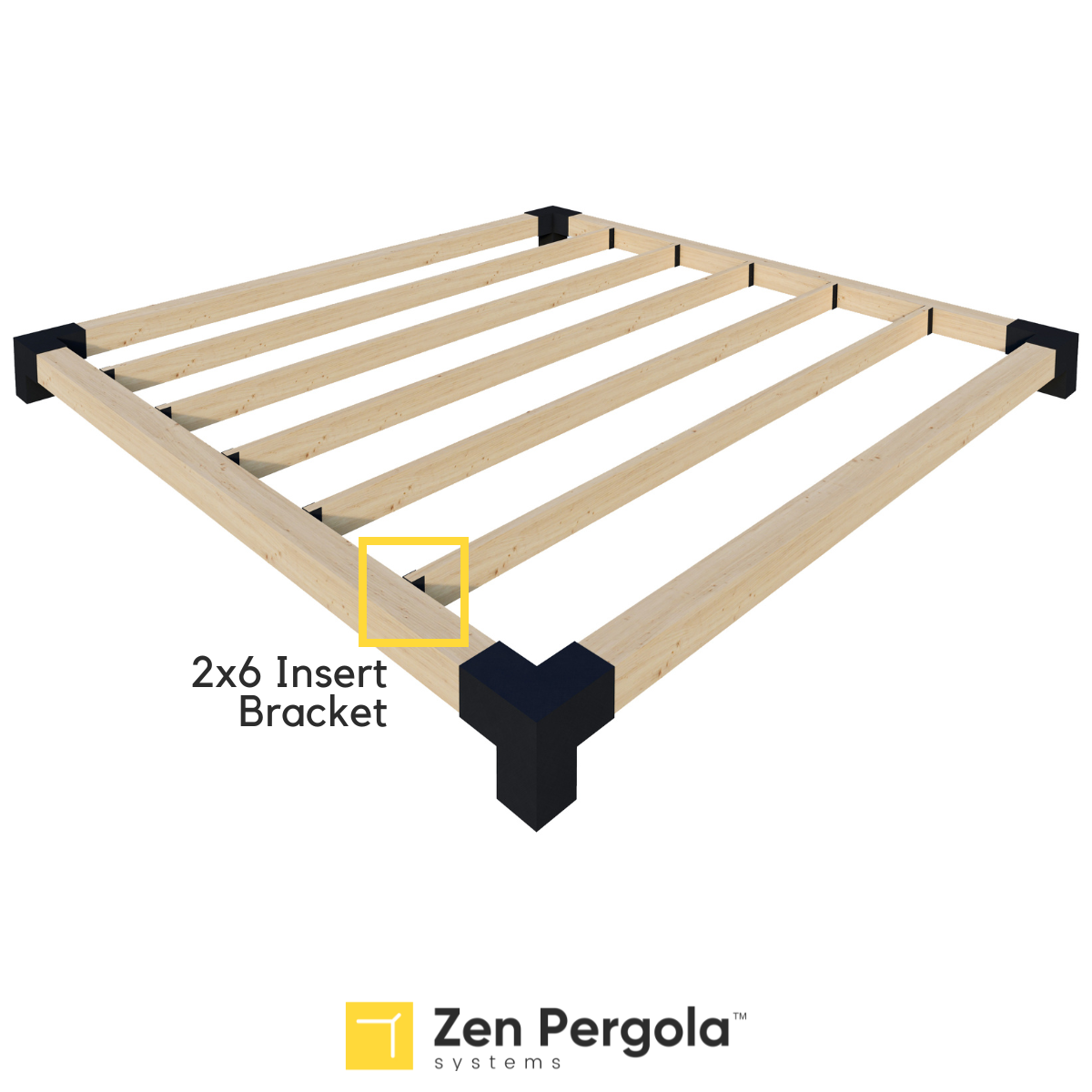

• Inline 2x6 roof rafter kit

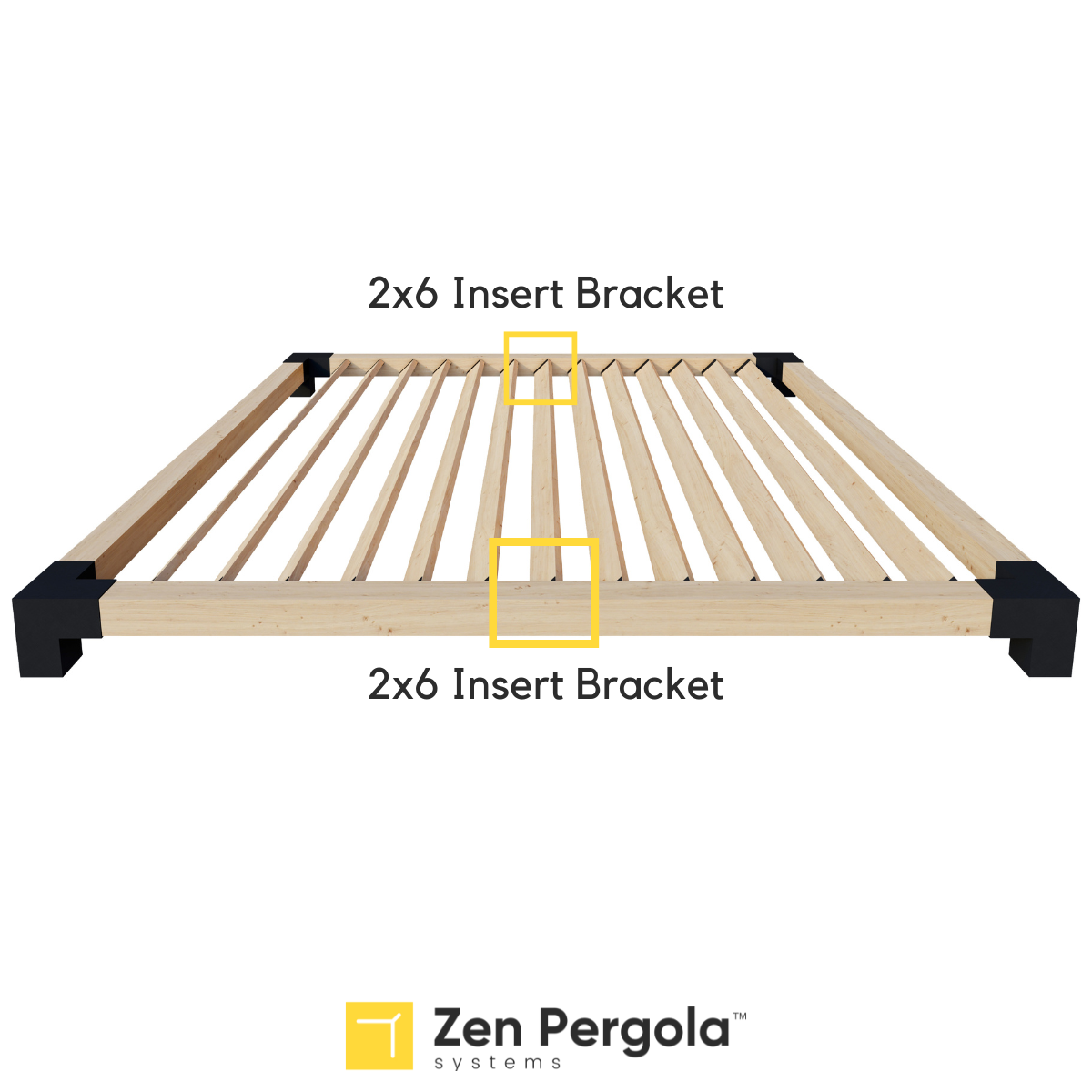

• Angled 2x6 shade purlin roof kit

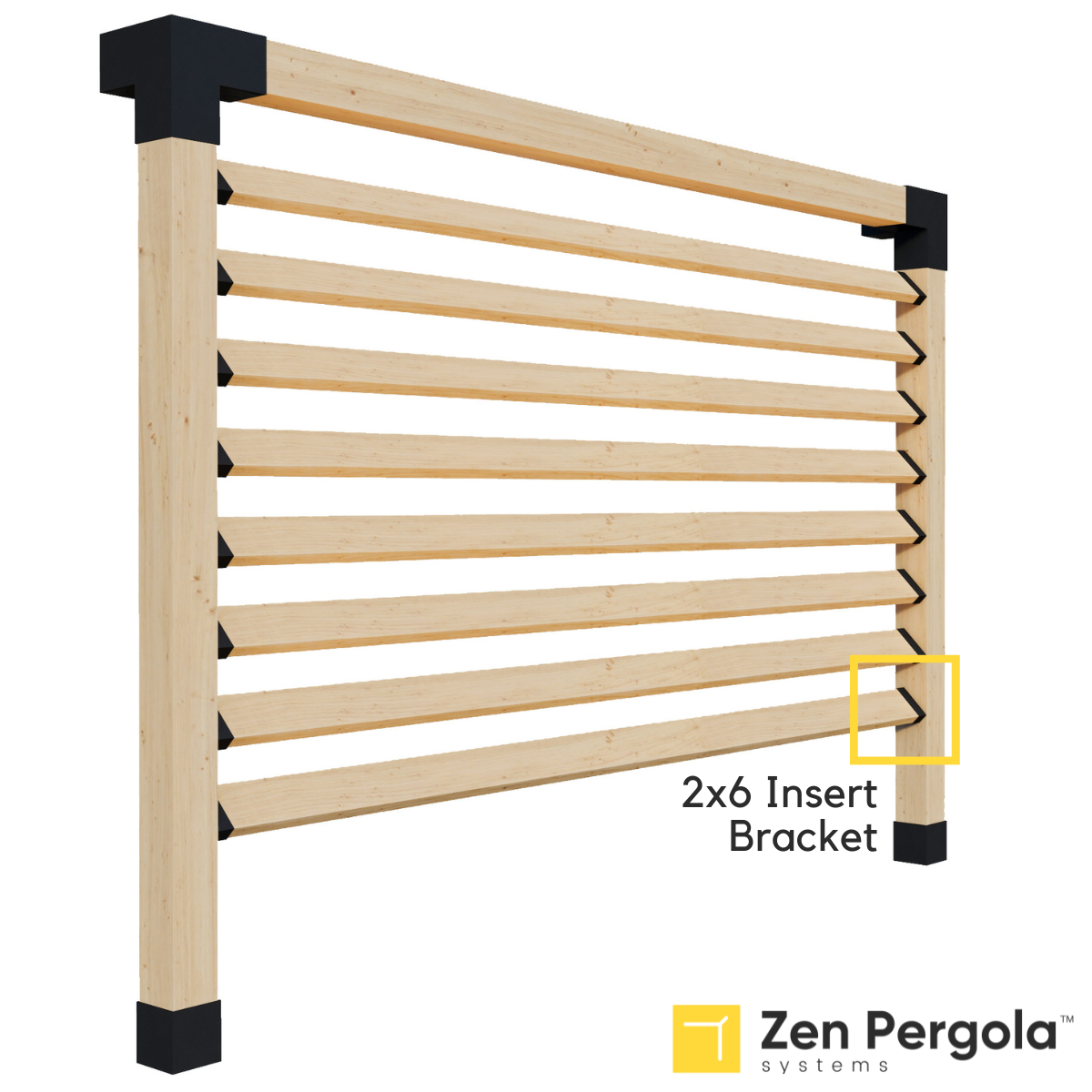

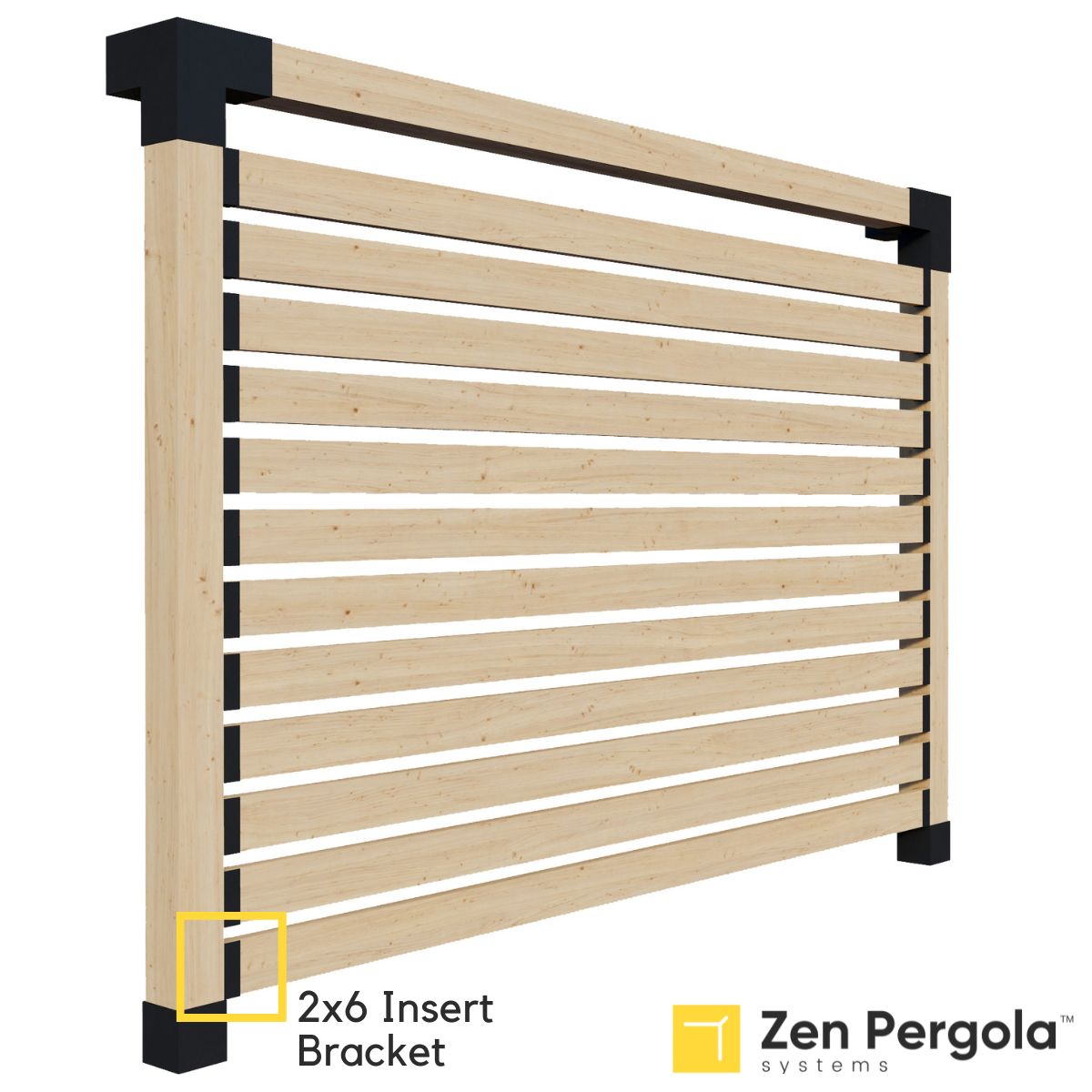

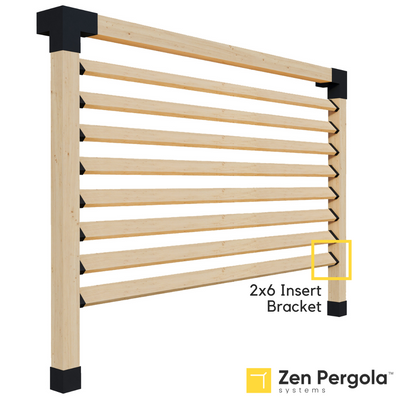

• Privacy walls (straight and angled)

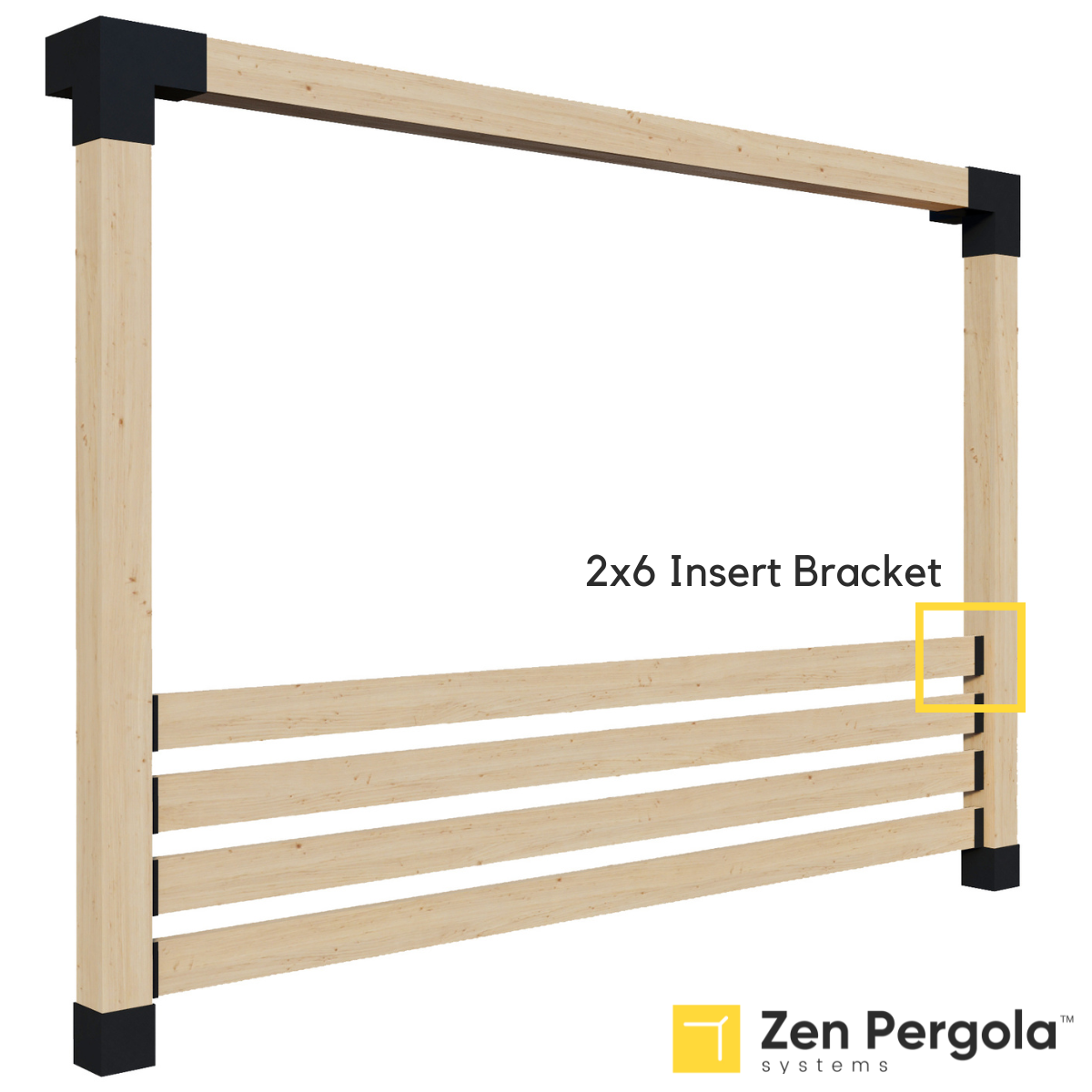

• Side railings (various designs)

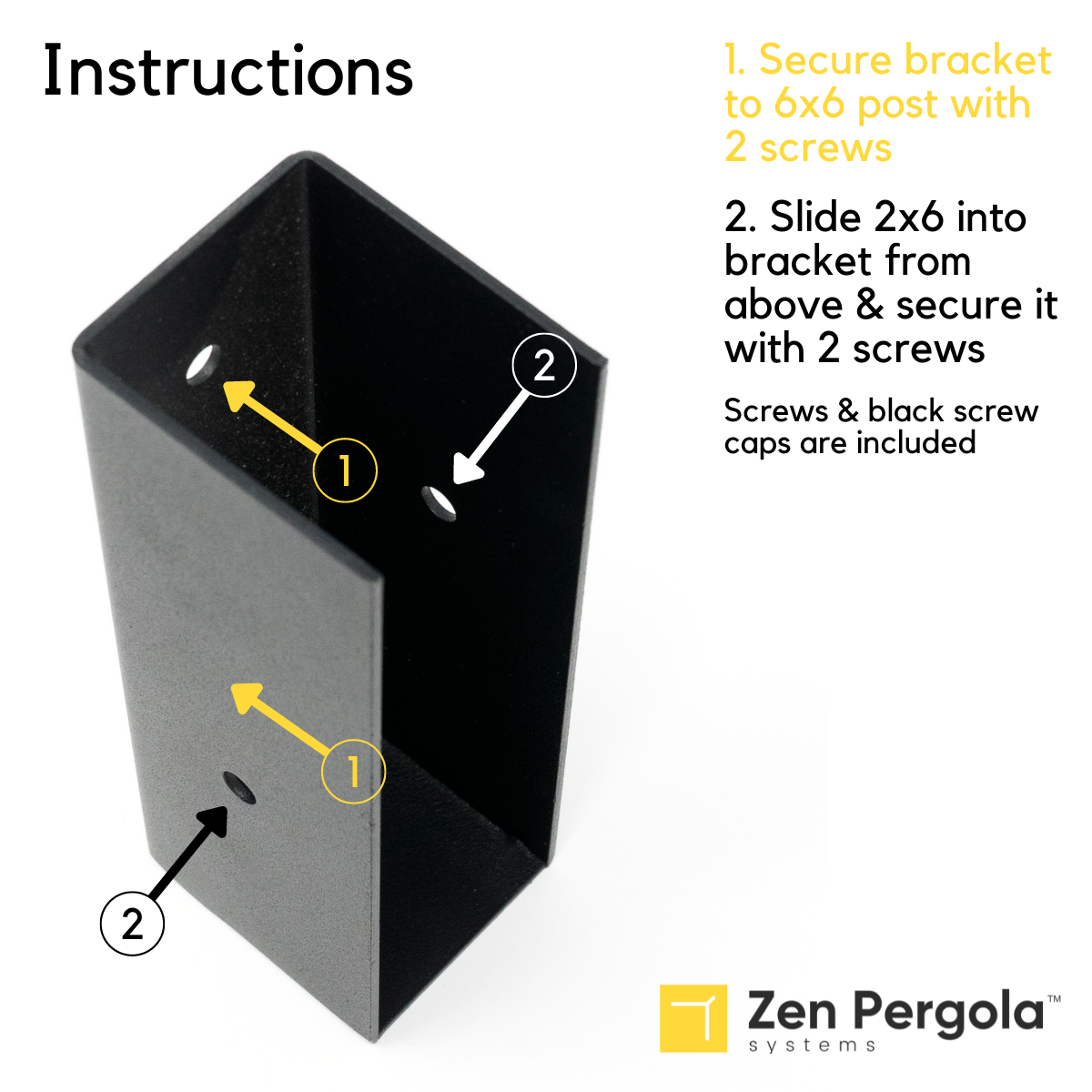

The brackets are open at the "top" (at whatever angle you choose to orient them) so the 2x6 wood slat can be inserted "from above" after you've secured the brackets to the existing posts. Thanks to the unique design of these insert brackets, you can orient the 2x6 slats at any angle you choose between -45 degrees and 45 degrees.

Steel Pergola Bracket Features

• Made with premium quality steel
• 14-gauge steel (~2.0mm thick)
• Made for dressed lumber commonly called 2x6s (actual dimensions are 1.5” x 5.5”)
• Laser-cut, bent and welded
• Advanced weather coating technology to withstand extreme weather conditions
• Pre-drilled holes for securing wood and accessories to bracket
• Includes stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head painted black) for securing wood into bracket
• Reduces your pergola build time by as much as 75%
• Backed by a 5-year warranty
• Shipped directly to your doorstep from Boise, Idaho

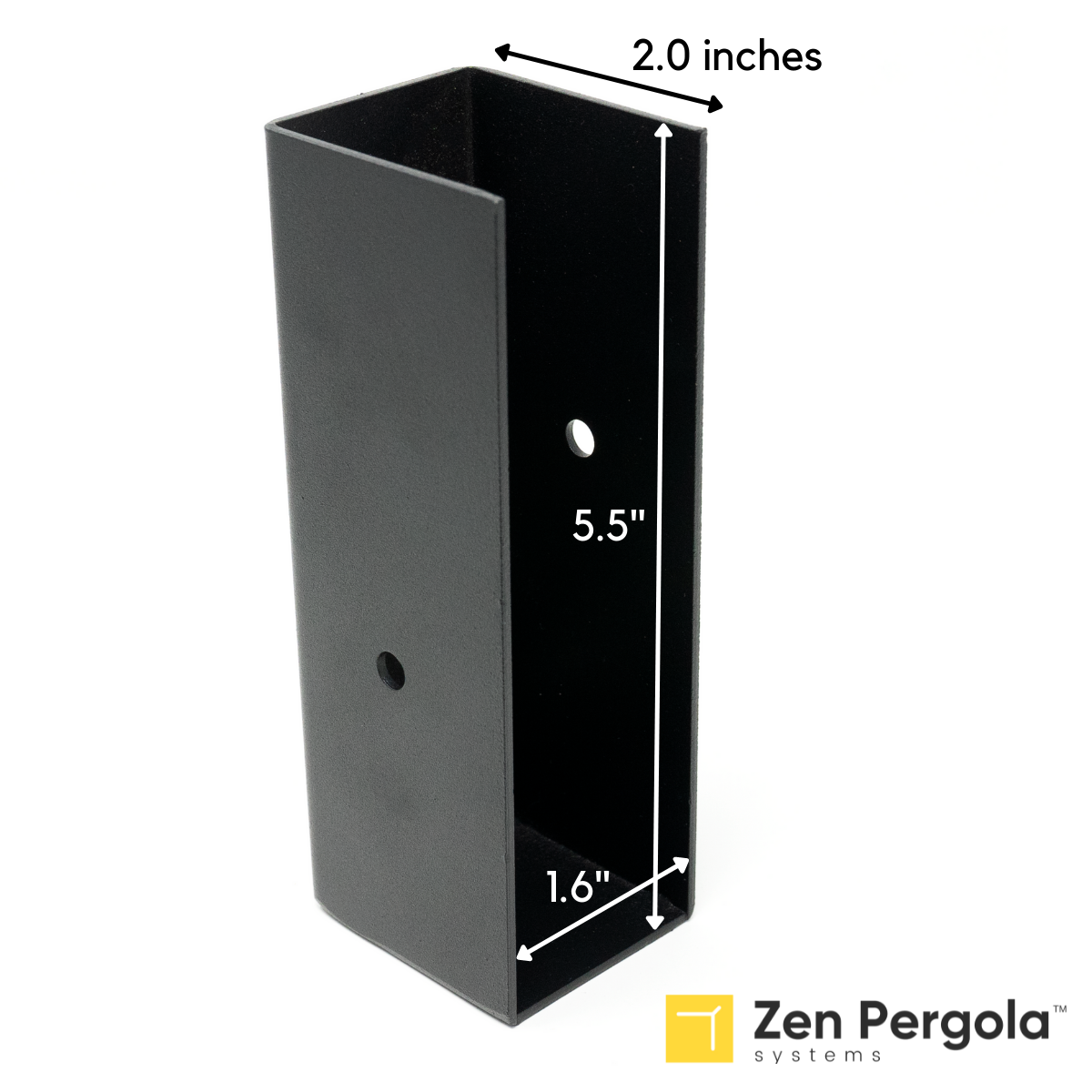

Dimensions & Specifications

• Width: 1.75 inches (44.5 mm)
• Depth: 2.0 inches (51 mm)
• Height: 5.55 inches (141 mm)
• Inner dimensions of sleeve (open at top): 1.6 x 5.5 inches (41 x 139 mm) - made for 2x6 wood slats (which measure 1.5 x 5.5 inches)
• Holes on end plate (secured to post/beam): 2 (one on each end)

• Holes on one side wall: 1 (slightly offset from center)
• Holes on opposite side wall: 1 (slightly offset from center in the other direction)
• Hole size: 0.25 inch (6.35 mm) - ideal for #10 size screws (included)
• Weight: 0.75 pound
• Not included: wood posts
