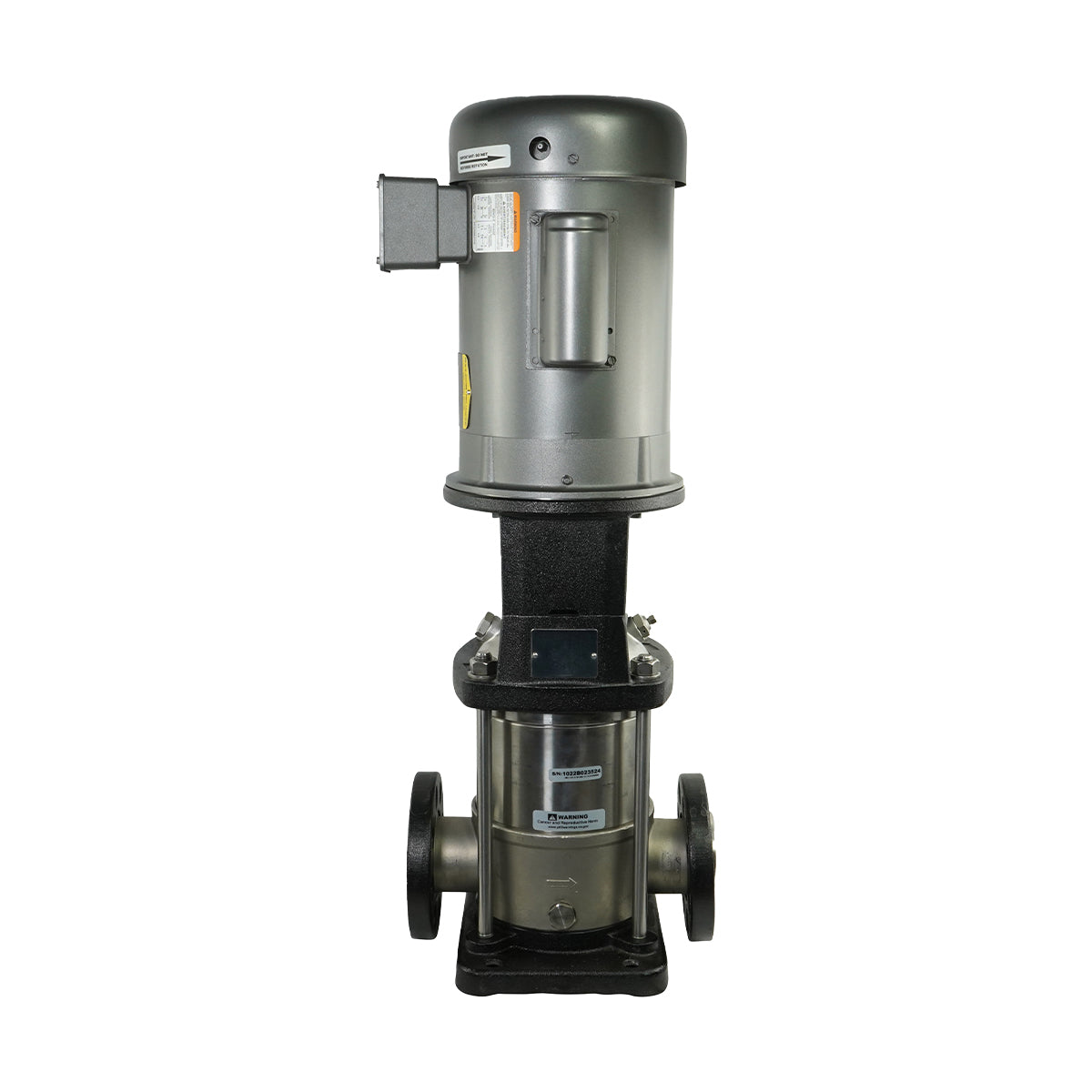

V-Flow Pump NV45-5S vertical booster pump by Crystal Quest Water Filters

Vendor:Crystal Quest Water Filters

V-Flow Pump NV45-5S

$6,619.99

The V-Flow Pump NV45-5S is a five-stage vertical booster pump engineered for industrial, commercial, and agricultural water applications. Built with 304 stainless steel and a three-phase motor, it provides a rated flow of 45 GPM and operates with a maximum working pressure of 232 PSI. Its vertical, in-line design is space-efficient for demanding environments.

  • Constructed from 304 stainless steel and cast iron components.
  • Equipped with a 5 HP, 3-phase, 60Hz motor for reliable performance.
  • Designed for applications including reverse osmosis, water treatment, boiler systems, irrigation, and hot and cold water circulation.
  • Features 2" ANSI 150# flanged connections suitable for industrial plumbing setups.
  • Includes installation manual and precise technical specifications for integration.

Vertical Multistage Booster Pump

V-Flow Pump NV45-5S Exact Details

Technical and Material Facts

Specifications and Construction

Rated Flow
45 GPM
Stages
5
Max Working Pressure
232 PSI
Max Inlet Pressure
118 PSI
Motor Power
5 HP
Motor Phase / Frequency
3PH / 60Hz
Motor Frame
182TC
Motor Enclosure
T - TEFC
Pump Length (Flanged)
19.53 in
Weight (Flanged)
89 lbs
Motor Bracket
Cast Iron
Pump Head
304 Stainless Steel
Impeller
304 Stainless Steel
Diffuser
304 Stainless Steel
Neck Ring
Teflon
Shaft
431 Stainless Steel
Casing
304 Stainless Steel
O-Ring
EPDM
Pump Base
304 Stainless Steel
Base Plate
Cast Iron
Mechanical Seal
Silicon Carbide/Silicon Carbide/EPDM

What arrives

V-Flow Pump NV45-5S unit, installation manual available online.

Purpose-built for Water Handling

Application and Design Fit

Install according to the provided instructions; ensure proper electrical connections and priming before operation.

Purchase and Delivery Details

Shipping and Returns

Shipping Information

Shipping rates and delivery estimates are provided at checkout. Supplier creates label within 2 days.

Return Policy

30 day returns policy. No label or restocking fees apply.
V-Flow Pump NV45-5S vertical booster pump by Crystal Quest Water Filters

Quiet force, built upright

A slim, in‑line tower of pressure—standing ready in the corner, making water move like clockwork.

In the mechanical room

Where flow becomes certainty

A vertical answer

Systems stall when pressure drifts and space runs out. The V-Flow Pump NV45-5S concentrates five stages of boost into a narrow, vertical profile that fits the room you actually have. With three-phase continuity and a rated 45 GPM, it steadies demanding lines without taking over the floor.

Steady pressure, smaller footprint

Reverse osmosis skids, boiler loops, and irrigation all depend on consistent movement. This vertical multistage design brings measured power to commercial and industrial circuits, keeping circulation predictable from start-up to shift change. Reliability here means fewer interruptions everywhere downstream.

For the rooms that run everything

Facility teams, plant operators, and builders who need dependable water boosting in tight mechanical spaces.

Put it to work

Install in-line on 2-inch ANSI 150# flanged piping to boost and stabilize flow for RO, treatment, washing, sprinkler, or hot/cold water circulation systems.
Crystal Quest Water Filters brand cover

Manufactured by Crystal Quest Water Filters

Maker Spotlight and Proven Engineering

Crystal Quest Water Filters ships worldwide, serving Residential, Commercial, and Industrial markets. The company combines American engineering, in-house design, and trusted components assembled in the USA, offering reliable water filtration and pumping solutions for various industries including agriculture, government, and manufacturing.
Explore Crystal Quest Water Filters

Your Questions Answered

V-Flow Pump NV45-5S Frequently Asked Questions

What is the rated flow for the NV45-5S?
It is rated at 45 GPM.
How much space does the unit take along the line?
As a vertical, in-line booster, it occupies a narrow footprint; the flanged pump length is 19.53 inches.
What motor does it use?
A 5 HP, three-phase, 60 Hz motor with a TEFC enclosure and 182TC frame.
What pressures can it handle?
Maximum working pressure is 232 PSI, with a maximum inlet pressure of 118 PSI.
Where can it be used?
It is suited for reverse osmosis, washing systems, water treatment, power plants, boiler systems, water boosting, irrigation, sprinkler systems, and hot or cold water circulation.
