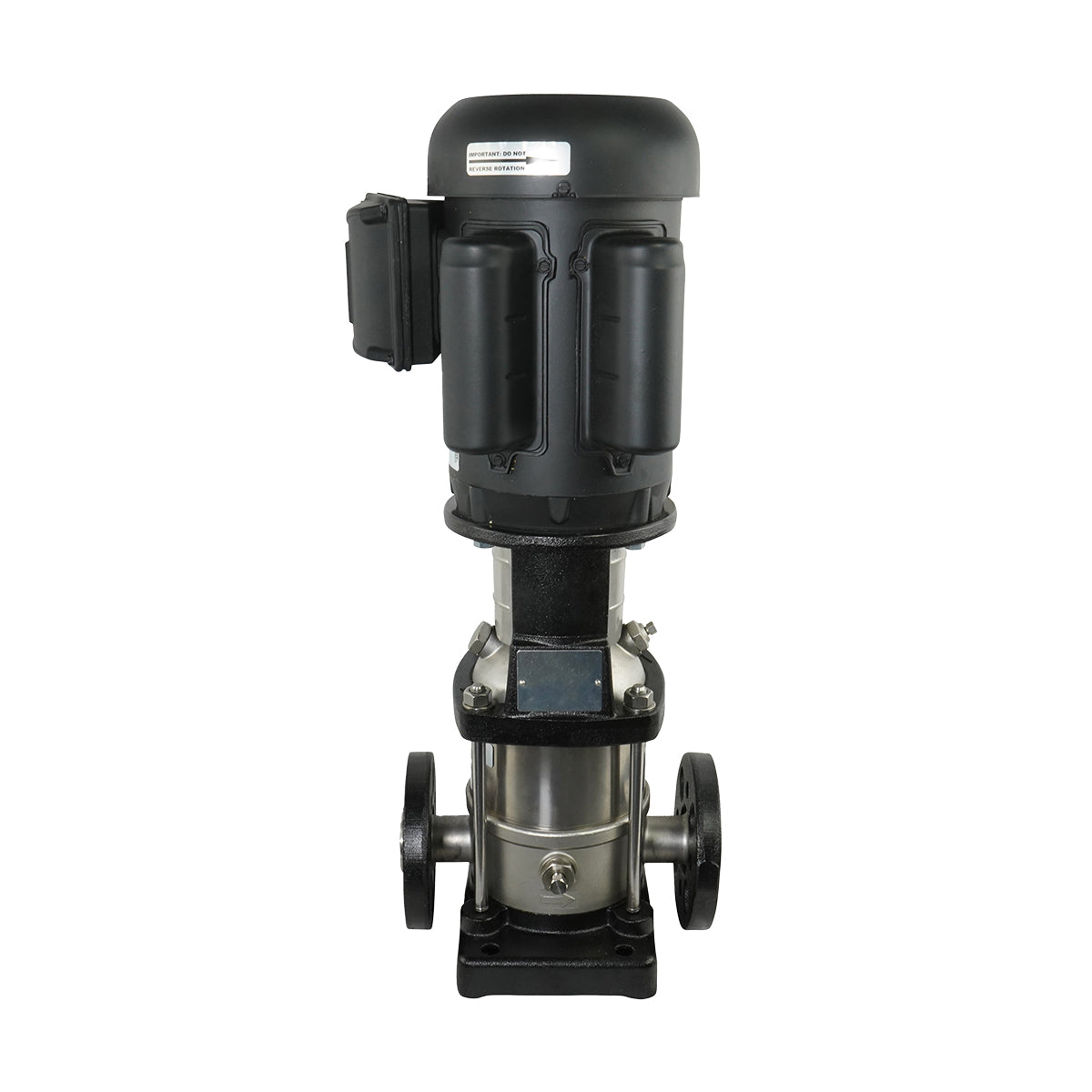

V-Flow Pump NV12-10S vertical stainless steel booster pump by Crystal Quest Water Filters

Vendor:Crystal Quest Water Filters

V-Flow Pump NV12-10S

$3,874.99

The V-Flow Pump NV12-10S is a vertical multistage booster pump constructed from 304 stainless steel, designed to deliver reliable, consistent water boosting performance in industrial, commercial, and agricultural environments. Its compact vertical, in-line footprint conserves floor space while offering a rated flow of 12 GPM across ten stages, with a maximum working pressure of 362 PSI. Available with single-phase or three-phase motor options, the pump suits applications such as reverse osmosis, irrigation, and water circulation.

  • Ten-stage vertical booster pump with in-line design
  • Available motor options: Single-Phase (1PH) and Three-Phase (3PH)
  • 304 stainless steel pump head, impeller, diffuser, and casing
  • Safety components include silicon carbide mechanical seals and EPDM O-rings
  • Compact footprint at 17.01 inches length (flanged) and 40 lbs weight
Motor
Motor: Single-Phase Motor (1PH)

Reliable water boosting in a compact vertical design

Buy the V-Flow Pump NV12-10S

Exact Details and Specifications

Technical Specifications & Materials

Rated Flow
12 GPM
Stages
10
Max Working Pressure
362 PSI
Max Inlet Pressure
150 PSI
Motor Power
2 HP
Motor Phase / Frequency
1PH or 3PH / 60Hz
Motor Frame
56C
Motor Enclosure
T - TEFC
Pump Length (Flanged)
17.01 in
Weight (Flanged)
40 lbs
Motor Bracket
Cast Iron
Pump Head
304 Stainless Steel
Impeller
304 Stainless Steel
Diffuser
304 Stainless Steel
Neck Ring
Teflon
Shaft
431 Stainless Steel
Casing
304 Stainless Steel
O-Ring
EPDM
Pump Base
304 Stainless Steel
Base Plate
Cast Iron
Mechanical Seal
Silicon Carbide/Silicon Carbide/EPDM

What arrives

V-Flow Pump NV12-10S unit with chosen motor option (Single-Phase or Three-Phase).

Fit for Utility and Industrial Needs

Product Application and Suitability

Install the pump vertically on a stable flat surface following the supplied installation manual. Connect 2" ANSI 150# flanged piping with appropriate gaskets. Confirm electrical connections and motor wiring as per specifications before priming and starting the pump.

Shipping and Returns

Order and Delivery Information

Shipping

Shipping rates and estimated delivery times vary; details and costs are available at checkout. Supplier typically creates shipping label within 2 days.

Returns

30 day returns policy with no label fee and no restocking fee.
V-Flow Pump NV12-10S vertical stainless steel booster pump by Crystal Quest Water Filters

Quiet force, held in line

A vertical spine of pressure and calm, the NV12-10S stands compact against the wall, giving back square footage while the system breathes easier.

In the flow

The steady center

Ten stages, one intent

Spaces that work hard rarely have room to spare—or tolerance for fluctuating pressure. The V-Flow Pump NV12-10S brings a vertical, in-line presence that conserves floor area while maintaining consistent, dependable output. In plants, greenhouses, and treatment rooms, it tempers the day’s surges so lines stay clear and predictable.

What changes

Water moves as the project demands—reverse osmosis, circulation, or a long irrigation run—without stealing attention. With single- or three‑phase motor options, the NV12-10S fits the power you actually have on site and keeps operation smooth. It’s the kind of reliability that lets the rest of the system do its job.

Who sees the difference

Operators and builders who need compact, consistent water boosting across industrial, commercial, or agricultural systems.

Where it lives

Set it in-line on a level pad, tie into the 2" ANSI 150# flanges, and let it handle daily boosting for treatment skids, sprinklers, or hot/cold circulation.
Crystal Quest Water Filters brand cover

About Crystal Quest Water Filters

Engineering American-Made Solutions

Crystal Quest Water Filters ships products worldwide serving Residential, Commercial, and Industrial markets. Combining American engineering, in-house product design, and custom tooling with selected components from trusted global vendors, each product is assembled in the USA. They provide engineered solutions for a broad range of businesses including bottled water plants, agricultural facilities, and government institutions.
Explore Crystal Quest Water Filters

Need Help?

Frequently Asked Questions

What applications suit the NV12-10S?
Reverse osmosis, water treatment, irrigation and sprinkler systems, hot and cold water circulation, and general water boosting.
How much flow does it handle?
It is rated at 12 GPM.
What are the motor options?
You can choose a single‑phase motor for sites without three‑phase power, or a three‑phase motor for higher efficiency and smoother continuous operation.
What connections does it use?
2 inch ANSI 150# flanged suction and discharge connections.
How compact is the unit?
The vertical, in-line design measures about 17.01 inches in length (flanged) and weighs approximately 40 lbs.
