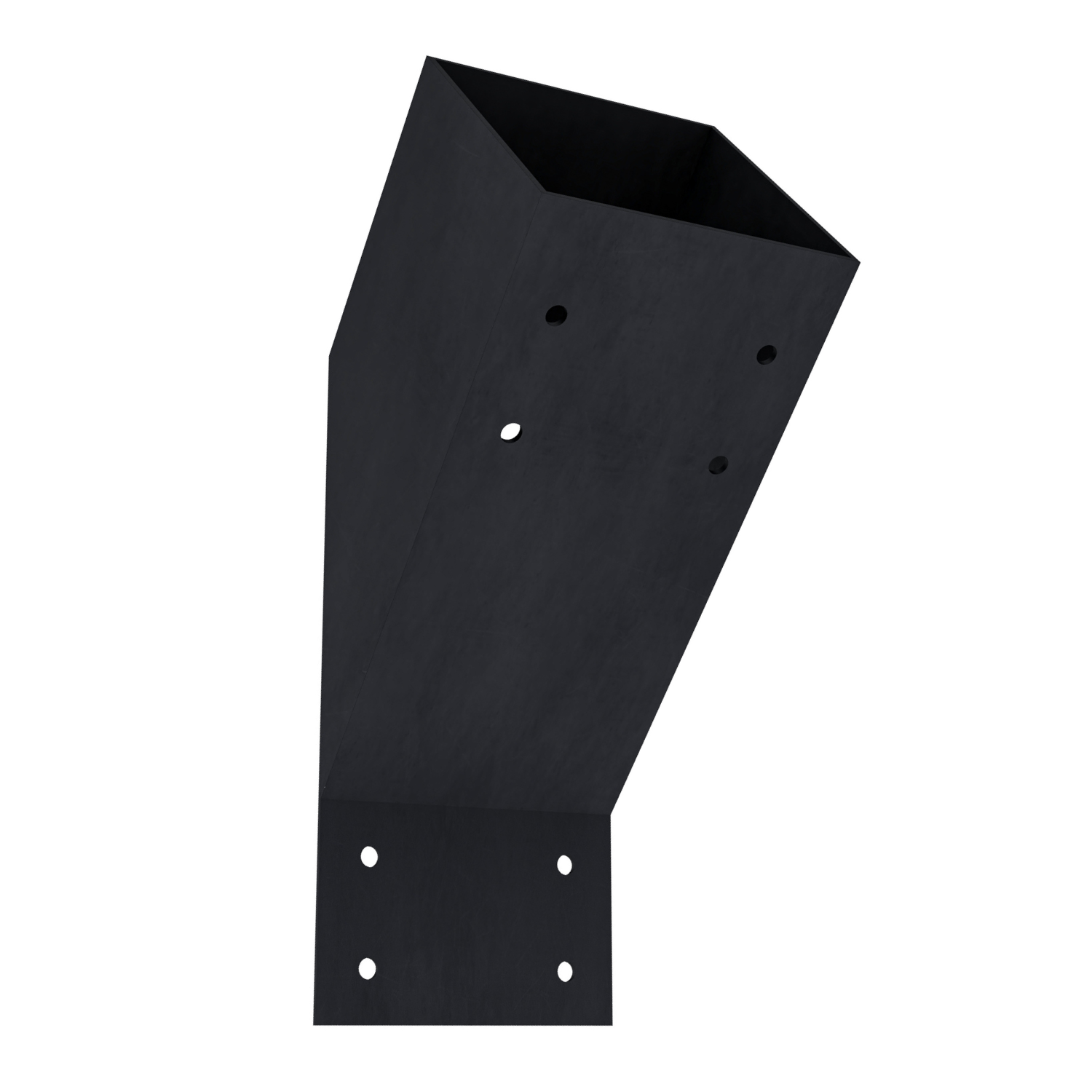

Black steel pergola support bracket for 4x4 wood posts, showing corner installation
Pergola Support Bracket (for 4x4 Wood Posts)
Pergola Support Bracket (for 4x4 Wood Posts)
Pergola Support Bracket (for 4x4 Wood Posts)
Pergola Support Bracket (for 4x4 Wood Posts)

Vendor:Zen Pergolas

Pergola Support Bracket (for 4x4 Wood Posts)

Sale price$39.00Regular price $49.00

Engineered for corner support in pergola builds, this bracket fits 4x4 wood posts precisely to offer both structural integrity and visual detail. Crafted from 14-gauge steel with a durable weather coating, it resists extreme conditions and simplifies assembly with included screws and pre-drilled holes. Its 45-degree bent arm design accommodates dressed lumber measuring 3.5 x 3.5 inches, stabilizing freestanding or attached pergolas to prevent sagging. Ideal for outdoor applications where matching post size and bracket angle are essential for a secure fit.

  • Fits standard 4x4 wood posts (actual 3.5” x 3.5” dimensions)
  • Constructed from 14-gauge steel with weather-resistant coating
  • Includes black-painted stainless steel 1.5-inch #10 self-tapping screws
  • Laser-cut, bent and welded for precise shape and strength
  • Reduces pergola build time significantly

Structural integrity meets design practicality

Why Choose This Pergola Support Bracket

Exact details and fit

Product Specifications and Features

Brand or supplier
Zen Pergolas
Product type
Garden Arches, Trellises, Arbors & Pergolas
Material
14-gauge steel (~2.0mm thick)
Coating
Weather-resistant
Wood compatibility
Dressed lumber 4x4 (3.5” x 3.5” actual)
Bracket angle
45 degrees
Arm dimensions
Front arm 7.5 inches, back arm 3.75 inches
Hole dimensions
0.25 inch diameter, 4 holes in 2x2 grid
Weight
1.875 pounds
Included hardware
Black-painted 1.5-inch #10 self-tapping stainless steel screws

What arrives

One Pergola Support Bracket (for 4x4 Wood Posts) including included screws unless a kit or set is listed separately. Wood posts and other accessories shown are not included.

Designed for 4x4 timber

Fits Dressed 4x4 Wood Posts

Confirm lumber size, layout, mounting surface, and required fasteners before using Pergola Support Bracket (for 4x4 Wood Posts). Install according to the supplier's instructions and local structural requirements.

Post dimensions: 3.5 x 3.5 inches

Compatible only with matching post or rafter sizes, layout type, fasteners, and installation surfaces. Check local codes and structural needs before building.

Always follow the manufacturer's care, use, and safety guidance.

Shipping and returns at a glance

Purchase and Delivery Details

Shipping

Shipping rates and estimated delivery times are shown at checkout.

Returns

Return requests are accepted within 30 days of delivery. Contact Resin Society first for damaged, defective, incorrect, or missing items and we will coordinate directly with Zen Pergolas.
Black steel pergola support bracket for 4x4 wood posts, showing corner installation

Quiet strength, clean lines

A dark, architectural bracket that tucks into the top corner and makes a pergola read crisp and composed.

At the corner

Where shade begins

Purpose with presence

Long spans can sag and corners can look unfinished. The Pergola Support Bracket (for 4x4 Wood Posts) steadies that meeting point with a 45-degree arm and a square, tailored fit for dressed 4x4s. Pre-drilled holes and included #10 stainless screws make the connection straightforward, so the build moves quickly and cleanly.

The finished look

Corners set the tone. With laser-cut 14‑gauge steel and an advanced weather coating, this bracket holds form through harsh seasons while reading as a deliberate detail. Your pergola feels grounded—visually and structurally—so gatherings under it feel easy and assured.

For the builder-host

Homeowners shaping a pergola—freestanding or attached—who want a refined corner detail that also resists bowing on longer runs of wood.

How it’s used

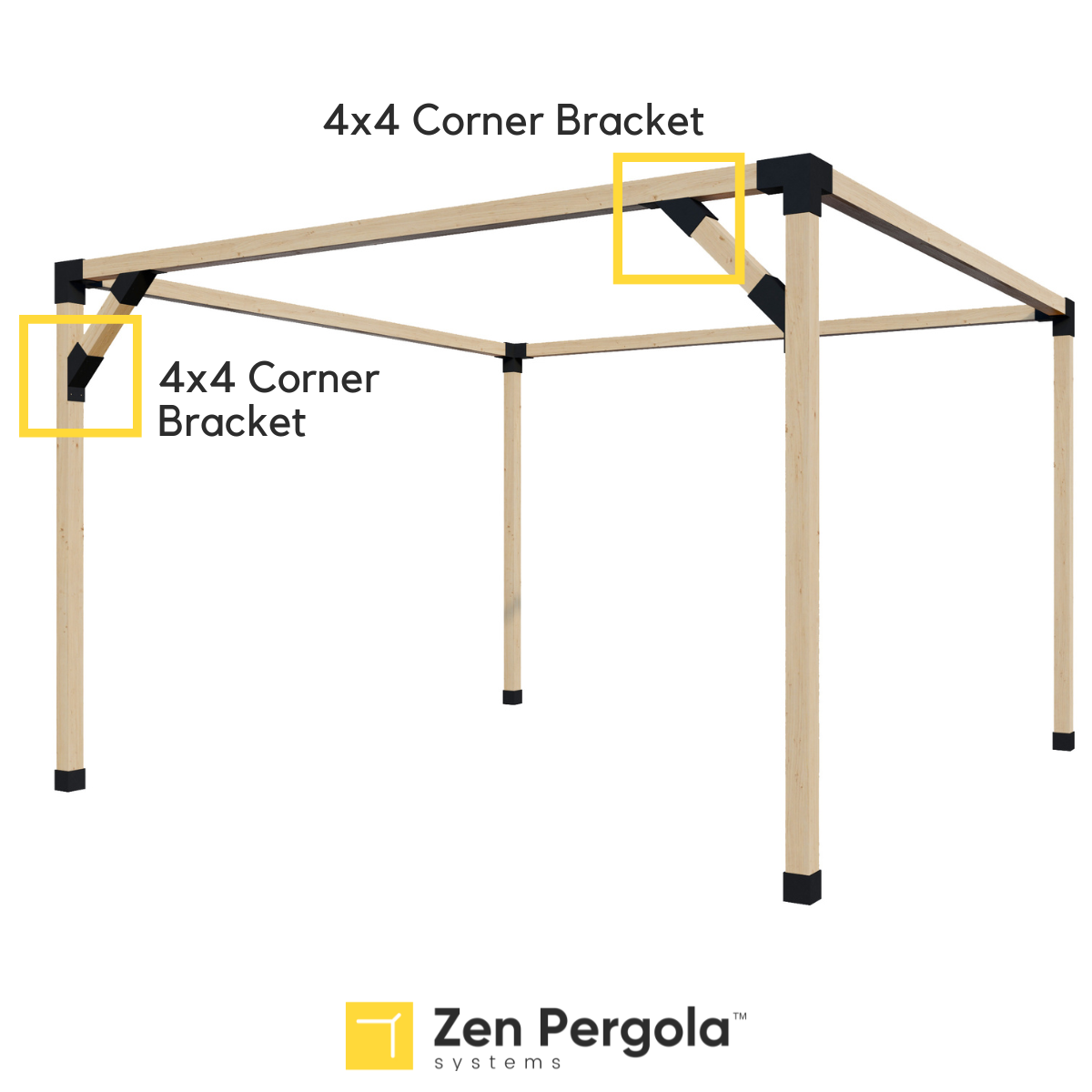

Place one bracket on the top and one on the side of each corner to secure 4x4 posts and add a crisp accent that counters sag on longer spans.
  • Pergolas
  • Outdoor builds
  • Post connections
  • Hammocks and swings
  • DIY structures
Zen Pergolas brand cover

About Zen Pergolas

Building hardware for cleaner outdoor wood projects

Zen Pergolas supplies pergola brackets, outdoor structure hardware, and wood-post support pieces from Idaho Falls, ID, specializing in modern DIY pergolas designed for easy builds, clean style, and lasting comfort. Their parts are aimed at builders and homeowners who want to create a backyard retreat with straightforward components that simplify patio structures and garden-adjacent builds. If you’re planning a tidy outdoor wood project—whether a compact shade structure over a deck or a larger pergola for entertaining—Zen Pergolas focuses on practical hardware that lets quality design read through the details. These solutions make structural choices feel intentional and accessible, so the finished outdoor living space looks composed and performs reliably.
Explore Zen Pergolas
93trees planted to date

Your order gives back

When you buy from Resin Society, you help plant trees through our reforestation partnership. It is a small way your order supports the materials, homes, and landscapes makers care about.

Need to know more?

Pergola Support Bracket FAQs

Does it fit standard 4x4 lumber?
Yes. It’s made for dressed 4x4s with actual dimensions of 3.5 x 3.5 inches; the inner opening is 3.6 x 3.6 inches.
How many brackets do I need per corner?
Two per corner—one for the top and one for the side.
Are screws included?
Yes. You get black-painted #10 self-tapping stainless steel wood screws (1.5-inch, pan/round head).
Can I use it on a pergola with 6x6 posts?
Yes. The 4x4 Support Bracket can be used on pergolas with either a 4x4 frame or a 6x6 frame, wherever a 4x4 element is being braced.
What is it made of and how weather-ready is it?
It’s laser-cut, bent, and welded from premium 14‑gauge steel and finished with advanced weather coating for harsh outdoor conditions.
