Pergola Roof Rafter Bracket (for 6x6 Wood Posts)
Pergola Roof Rafter Bracket (for 6x6 Wood Posts)

Vendor:Zen Pergolas

Pergola Roof Rafter Bracket (for 6x6 Wood Posts)

Sale price$36.00Regular price $45.00

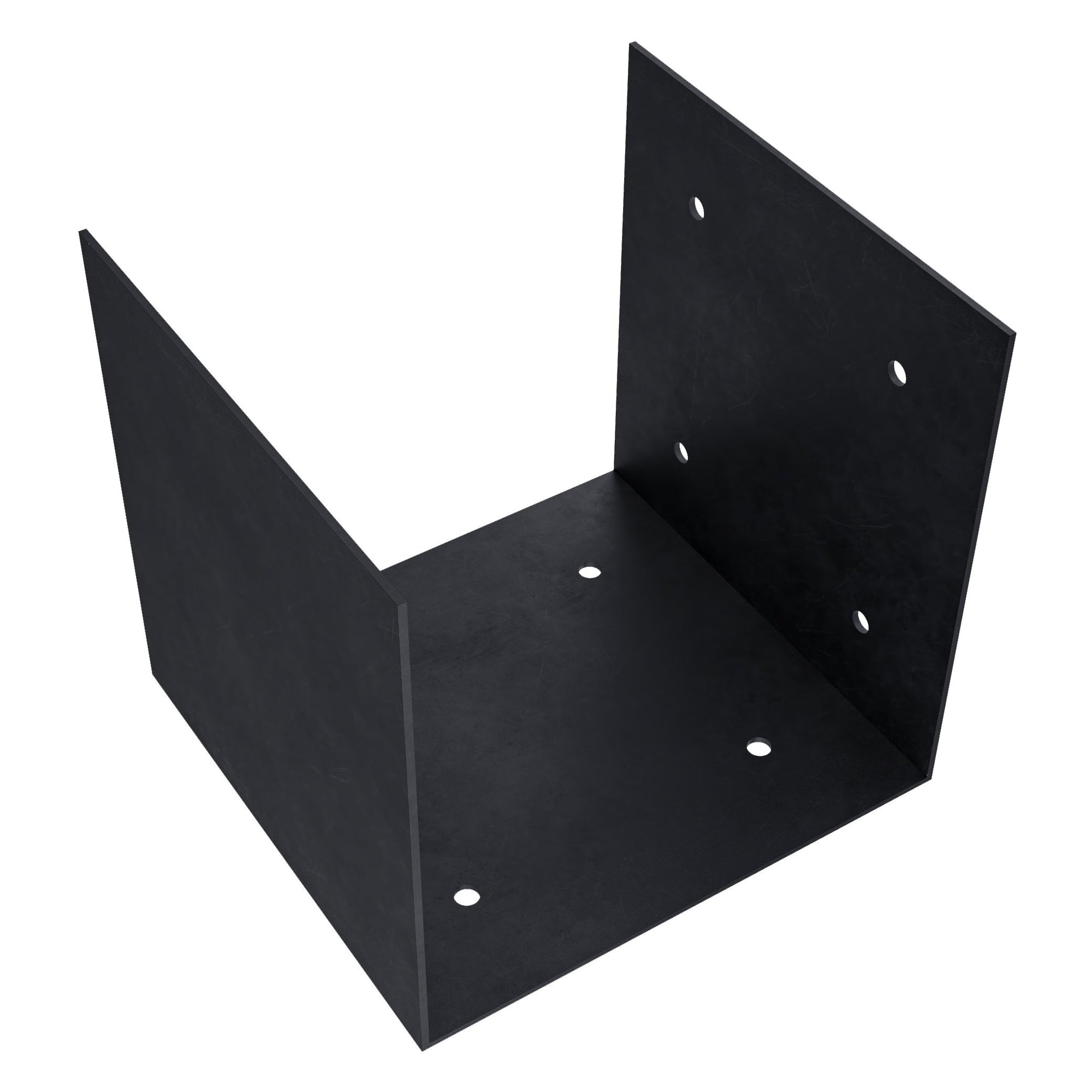

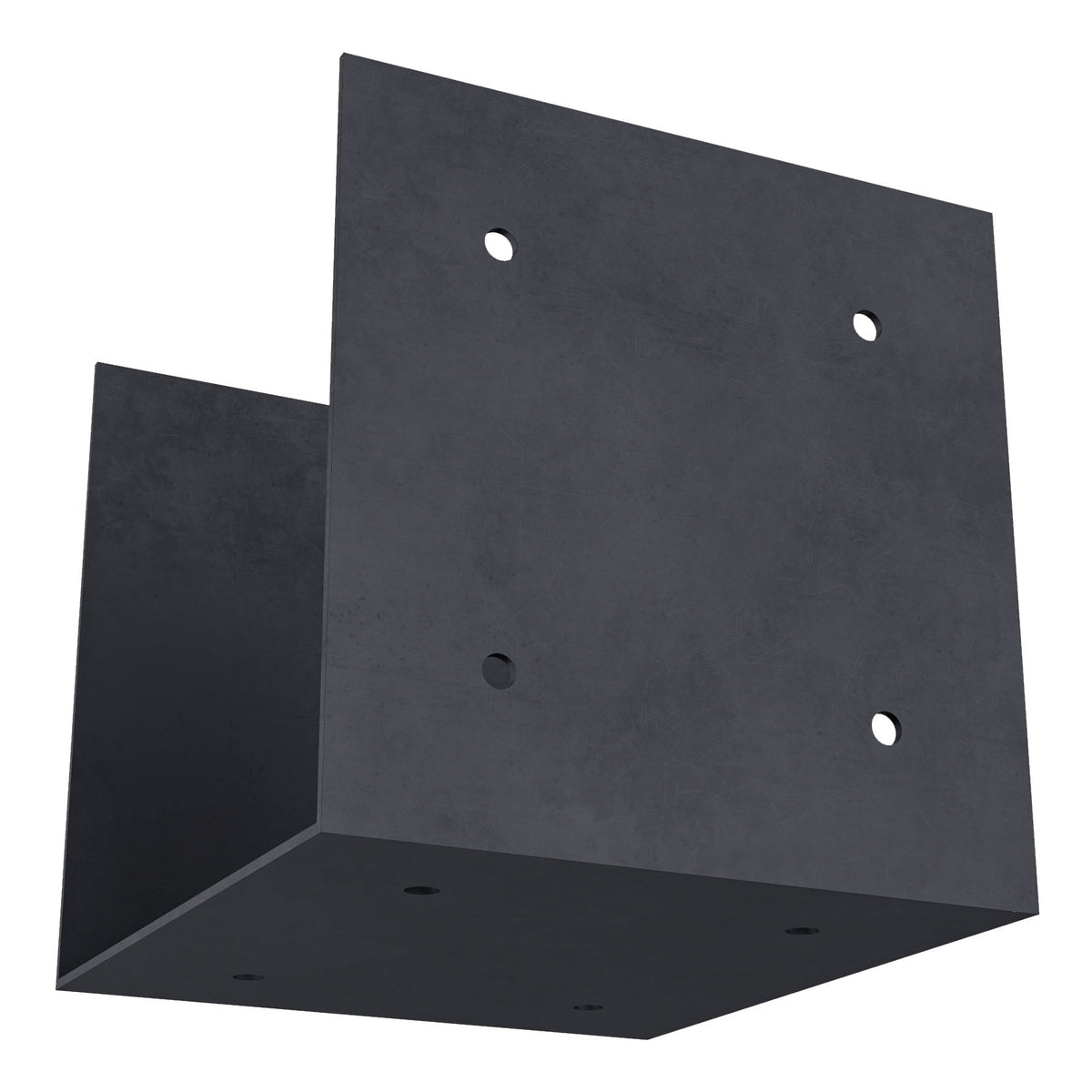

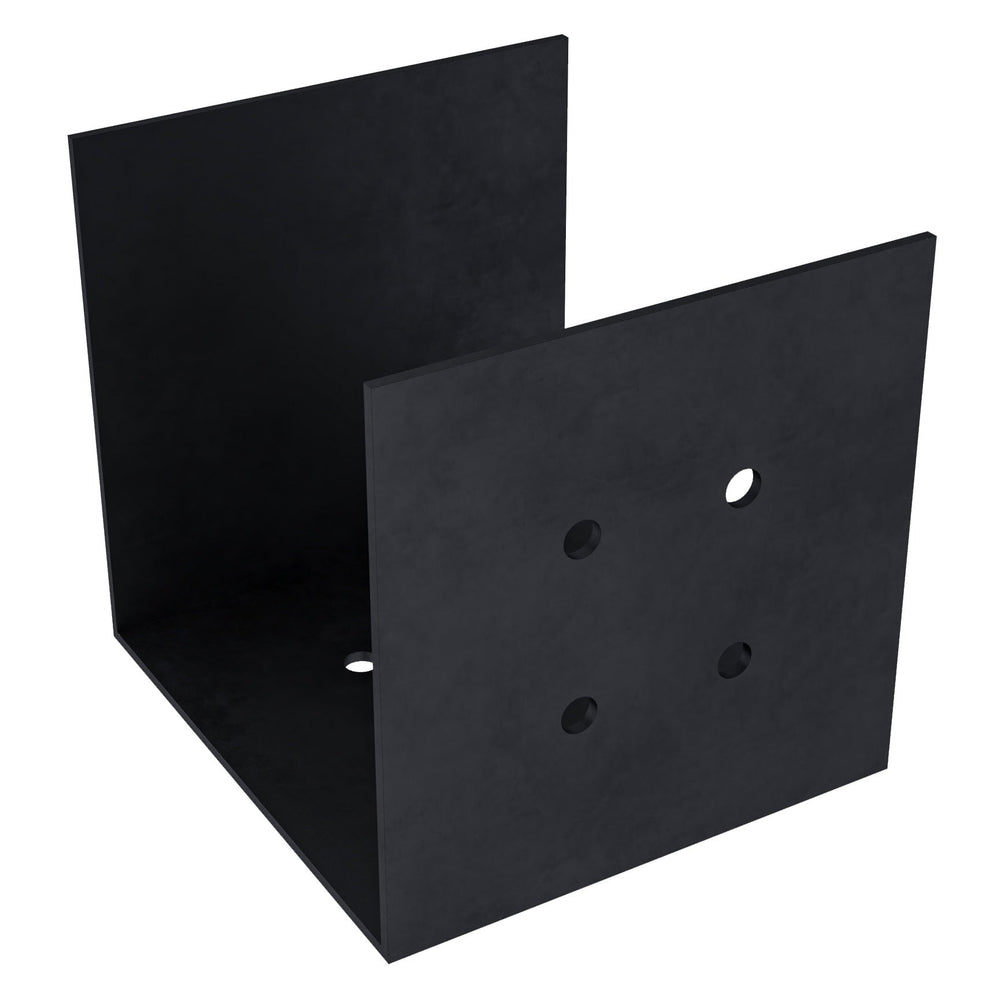

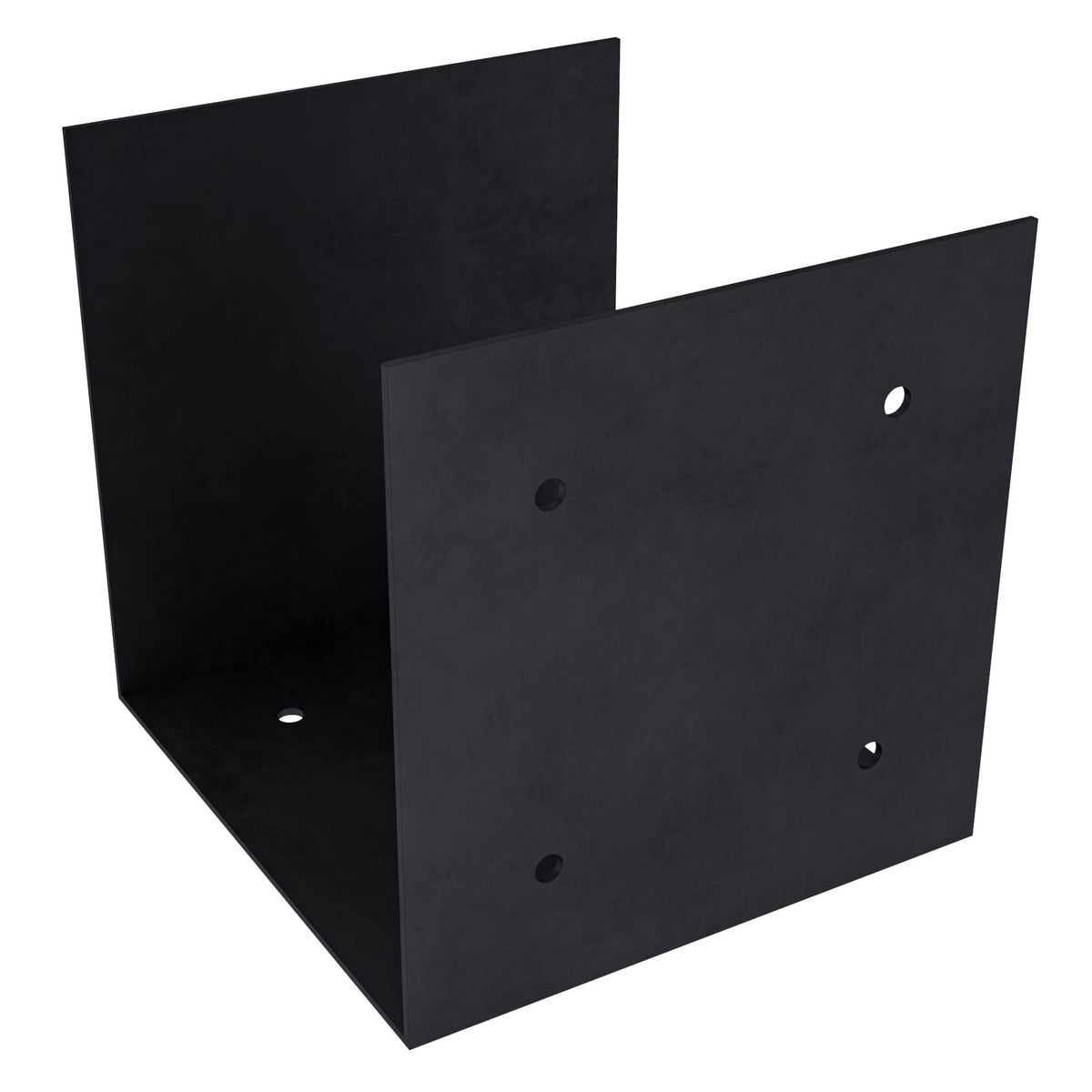

The Pergola Roof Rafter Bracket by Zen Pergolas is designed for 6x6 wood posts (5.5” x 5.5” actual size) and adds a second roof layer to pergolas by securely connecting roof rafters above beams. Made from 12-gauge steel with a weather-resistant coating, it includes pre-drilled holes and stainless steel screws for mounting.

  • Fits 6x6 wood posts with 5.5” square dimensions
  • Made of 12-gauge steel with advanced weather coating
  • Includes black stainless steel self-tapping screws
  • Laser-cut, bent, and welded construction
  • Pre-drilled holes for accurate fastening

Engineered fastening for 6x6 wood pergolas

Connect Known Sizes with Confidence

Specifications and features

Exact Dimensions and Construction

Brand or supplier
Zen Pergolas Product type: Garden Arches, Trellises, Arbors & Pergolas Material: 12-gauge steel (~2.6mm thick) Dimensions: Width 5.83 in (148 mm), Depth 5.5 in (139.5 mm), Height 5.5 in (139.5 mm) Post fit inside sleeve: 5.63 x 5.5 in (143 x 139.5 mm) Holes: 0.25 in (6.35 mm) diameter for #10 screws Included fasteners: 1.5-inch #10 black stainless steel self-tapping wood screws Weight: 5.25 pounds Finish: Weather-resistant coating Manufacture method: Laser-cut, bent, welded

What arrives

One Pergola Roof Rafter Bracket (for 6x6 Wood Posts) including stainless steel screws. Wood posts and props shown in images are not included.

Designed for matched lumber

Fits Standard 6x6 Posts Precisely

Confirm lumber size, layout, mounting surface, and required fasteners before using Pergola Roof Rafter Bracket (for 6x6 Wood Posts). Install according to Zen Pergolas instructions and local structural requirements.

5.5” x 5.5” post compatibility

Compatible only with matching post or rafter sizes, layout type, fasteners, and installation surfaces. Check local codes and structural needs before building.

Always follow the manufacturer's care, use, and safety guidance.

Smooth ordering and support

Shipping and Returns

Shipping rates and delivery times calculated at checkout.

Shipping rates and estimated delivery times are shown at checkout.

Returns accepted within 30 days. Contact Resin Society for issues; coordination with Zen Pergolas provided.

Return requests accepted within 30 days of delivery. Contact Resin Society first for damaged, defective, incorrect, or missing items; coordination with Zen Pergolas is provided.
Pergola Roof Rafter Bracket (for 6x6 Wood Posts)

Built for open-air moments

A quiet, black steel bracket that turns beams into a roofline—clean, squared, and certain.

Over the beams

Rafters that frame the sky

Simple strength, considered

Piecing together a pergola roof can stall a weekend and test patience. The Pergola Roof Rafter Bracket (for 6x6 Wood Posts) brings the rafters into alignment and holds them where they should live—right on top of the beams. Pre-drilled holes and included #10 stainless steel screws make the connection straightforward, so the overhangs fall into place and the structure reads as one.

From parts to a place

Outdoor rooms are made in the details: square corners, true lines, a roof that feels intentional. These 12‑gauge steel brackets create that calm order, whether the pergola stands alone in the yard or ties back to the house. With a weather-ready finish and a form that disappears into the shadow line, they let gatherings take center stage—coffee at first light, dinners that linger.

For the patio you actually use

Homeowners shaping a freestanding or attached pergola from 6x6 dressed lumber and wanting a crisp, durable roof layer without fuss.

How it lives

Seat each bracket on the beam, slide in the rafter for 6x6 posts, and fasten through the pre-drilled holes to set a clean upper layer with optional 6–12 inch overhangs.
  • Pergolas
  • Outdoor builds
  • Post connections
  • Hammocks and swings
  • DIY structures
Zen Pergolas brand cover

Zen Pergolas Hardware Line

Purpose-Built Outdoor Construction Essentials

Zen Pergolas supplies pergola brackets, outdoor structure hardware, and wood-post support pieces from Idaho Falls, ID, specializing in modern DIY pergolas designed for easy builds, clean style, and lasting comfort. Their parts are aimed at builders and homeowners who want to create a backyard retreat with straightforward components that simplify patio structures and garden-adjacent builds. If you’re planning a tidy outdoor wood project—whether a compact shade structure over a deck or a larger pergola for entertaining—Zen Pergolas focuses on practical hardware that lets quality design read through the details. These solutions make structural choices feel intentional and accessible, so the finished outdoor living space looks composed and performs reliably.
Explore Zen Pergolas
93trees planted to date

Your order gives back

When you buy from Resin Society, you help plant trees through our reforestation partnership. It is a small way your order supports the materials, homes, and landscapes makers care about.

Pergola Hardware Questions

Essential Details for Installation

Will this fit my lumber?
Yes—it's made for dressed 6x6 posts, which measure 5.5 x 5.5 inches; the inner sleeve is sized accordingly.
Can I use it on both freestanding and attached pergolas?
Yes, the bracket works for either configuration to add the rafter layer above your beams.
What fasteners come with it?
Stainless steel 1.5-inch #10 self‑tapping wood screws with painted black pan/round heads are included for securing wood into the bracket.
How is it constructed?
It's laser-cut, bent, and welded from premium 12‑gauge steel with pre‑drilled holes.
What about weather and longevity?
The bracket features advanced weather coating to withstand extreme conditions and is backed by a 5‑year warranty.
