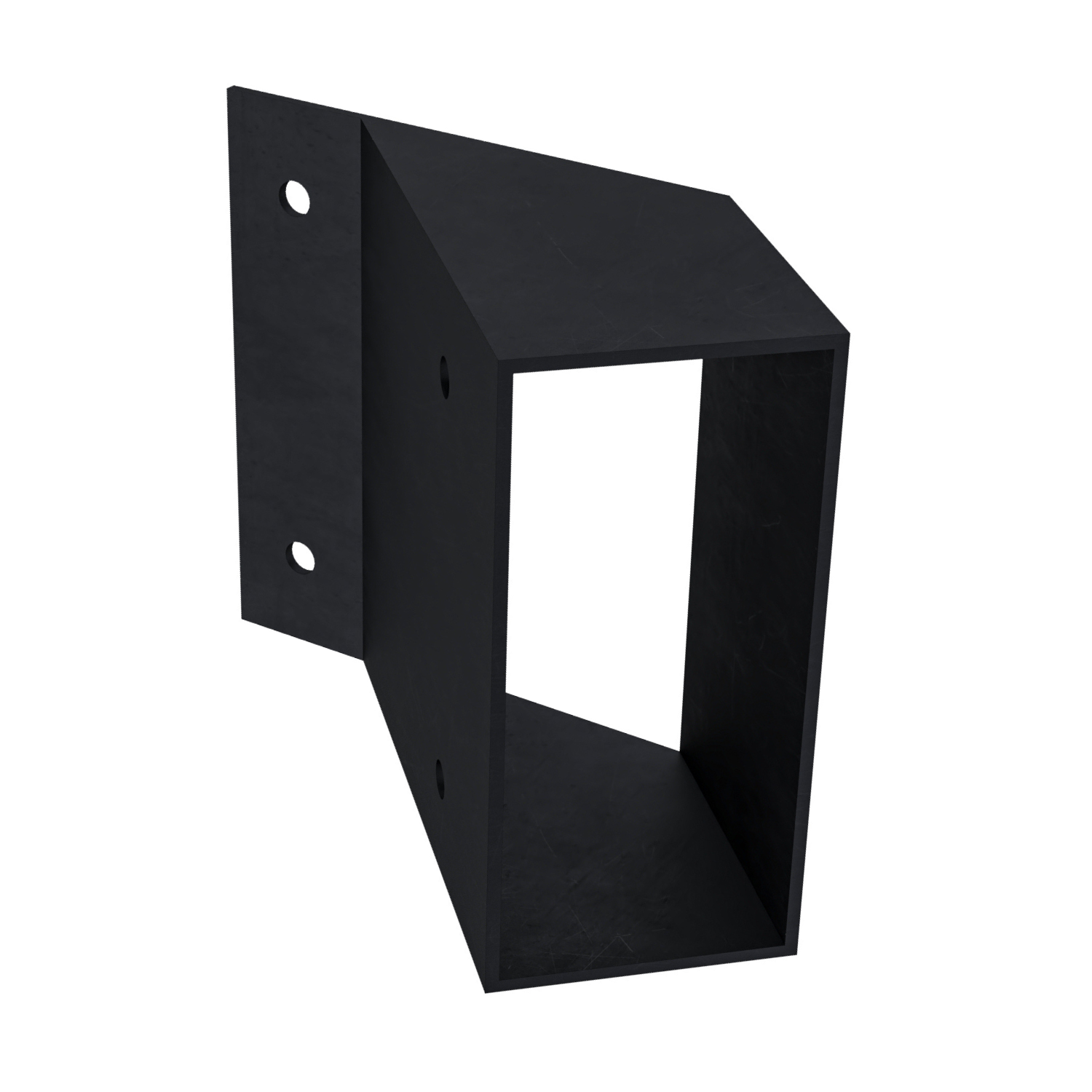

Zen Pergolas Pergola Roof Rafter 45° Angle Bracket in black finish
Pergola Roof Rafter 45° Angle Bracket (for 2x4 Wood Slats)
Pergola Roof Rafter 45° Angle Bracket (for 2x4 Wood Slats)

Vendor:Zen Pergolas

Pergola Roof Rafter 45° Angle Bracket (for 2x4 Wood Slats)

Sale price$24.00Regular price $30.00

The Pergola Roof Rafter 45° Angle Bracket by Zen Pergolas is engineered for setting 2x4 wood slats at a 45-degree angle between two perpendicular pergola beams. Crafted from 14-gauge steel with a weather-resistant coating, it is designed to fit standard 2x4 lumber. The bracket comes with black stainless steel self-tapping screws for secure installation, reducing assembly time significantly.

  • Constructed from 14-gauge steel (~2.0mm thick) with advanced weather coating
  • Fits 2x4 wood slats (actual size 1.5” x 3.5”)
  • Laser-cut, bent, and welded for precise fit
  • Includes black stainless steel #10 self-tapping wood screws
  • Reduces pergola build time by up to 75%

Connect 2x4 Slats at a 45° Angle

Purpose-Built Pergola Hardware

Precision Steel Bracket Details

Exact Fit and Features

Brand or supplier
Zen Pergolas
Product type
Garden Arches, Trellises, Arbors & Pergolas
Material thickness
14-gauge steel (~2.0mm)
Wood slot size (inside channel)
1.65 x 3.66 inches (42 x 93 mm)
Bracket width
3.82 inches (97 mm)
End plate length
1 inch (26 mm)
Hole count
2 on end plate, 2 on inside wall, 0 on outside wall
Hole size
0.25 inch (6.35 mm) for #10 screws
Weight
0.75 pound
Fasteners included
1.5-inch #10 black stainless steel self-tapping screws
Coating
Advanced weather-resistant finish

What arrives

One Pergola Roof Rafter 45° Angle Bracket (for 2x4 Wood Slats) in the selected option unless the product page clearly lists a set or kit. Props and styling accessories shown in photos are not included.

Designed for 2x4 Lumber

Compatible Wood Size and Angle

Confirm lumber size, layout, mounting surface, and required fasteners before using Pergola Roof Rafter 45° Angle Bracket (for 2x4 Wood Slats). Install according to the supplier's instructions and local structural requirements.

Fitting 1.5” x 3.5” Wood Slats at 45°

Compatible only with matching post or rafter sizes, layout type, fasteners, and installation surfaces. Check local codes and structural needs before building.

Always follow the manufacturer's care, use, and safety guidance.

Shipping and Returns

Direct Delivery and Satisfaction

Shipping rates and delivery times shown at checkout.

Shipping rates and estimated delivery times are shown at checkout.

Returns accepted within 30 days; contact Resin Society for support with damaged or incorrect items.

Return requests are accepted within 30 days of delivery. Contact Resin Society first for damaged, defective, incorrect, or missing items and we will coordinate directly with Zen Pergolas.
Zen Pergolas Pergola Roof Rafter 45° Angle Bracket in black finish

Angle made simple

A quiet, black steel silhouette that tucks 2x4 slats into a clean 45° rhythm across your pergola roof.

Shaping shade

Order in the corner

Purposeful geometry

Corner pergolas and irregular spans often stall at the roof: how to seat diagonal 2x4s neatly between perpendicular beams. The Pergola Roof Rafter 45° Angle Bracket (for 2x4 Wood Slats) creates a clear path—precise, repeatable, and already drilled. Its 14‑gauge steel body and weather coating bring quiet confidence to the build. Included #10 stainless screws mean you can move from layout to structure without hunting parts.

Crisp lines, faster builds

Shade isn’t only about coverage; it’s the pattern above the table where people linger. These brackets set each slat at a dependable 45°, so the roof reads as one considered plane from every seat. Less time measuring, more time enjoying the way afternoon light moves through the grid.

For the determined builder

Homeowners or builders shaping triangle or irregular pergolas who want a clean diagonal slat layout using standard 2x4 lumber.

Where it works

Mount between two perpendicular pergola beams to hold a 2x4 slat at a fixed 45° angle across the span.
  • Pergolas
  • Outdoor builds
  • Post connections
  • Hammocks and swings
  • DIY structures
Zen Pergolas brand cover

Maker Profile

Zen Pergolas Hardware Expertise

Zen Pergolas supplies pergola brackets, outdoor structure hardware, and wood-post support pieces from Idaho Falls, ID, specializing in modern DIY pergolas designed for easy builds, clean style, and lasting comfort. Their parts are aimed at builders and homeowners who want to create a backyard retreat with straightforward components that simplify patio structures and garden-adjacent builds. If you’re planning a tidy outdoor wood project—whether a compact shade structure over a deck or a larger pergola for entertaining—Zen Pergolas focuses on practical hardware that lets quality design read through the details. These solutions make structural choices feel intentional and accessible, so the finished outdoor living space looks composed and performs reliably.
Explore Zen Pergolas
93trees planted to date

Your order gives back

When you buy from Resin Society, you help plant trees through our reforestation partnership. It is a small way your order supports the materials, homes, and landscapes makers care about.

Common Questions

Pergola Roof Rafter 45° Angle Bracket FAQs

What size lumber fits this bracket?
It’s made for dressed 2x4s with actual dimensions of 1.5 x 3.5 inches; the channel measures about 1.65 x 3.66 inches.
Does it include the screws I need?
Yes. It includes black-painted stainless steel #10 self-tapping wood screws, 1.5 inches long, sized for the pre-drilled holes.
How is it oriented on the pergola?
The end plate with two holes fastens to the roof beam, and the open channel holds the 2x4 slat at a 45° angle between the perpendicular beams.
Is it suited to outdoor conditions?
The bracket is 14‑gauge steel with an advanced weather coating designed to withstand extreme weather conditions.
What else do I need to complete my frame?
Wood posts and slats are not included. Choose your 2x4 lumber and attach it using the included screws and the bracket’s pre-drilled holes.
