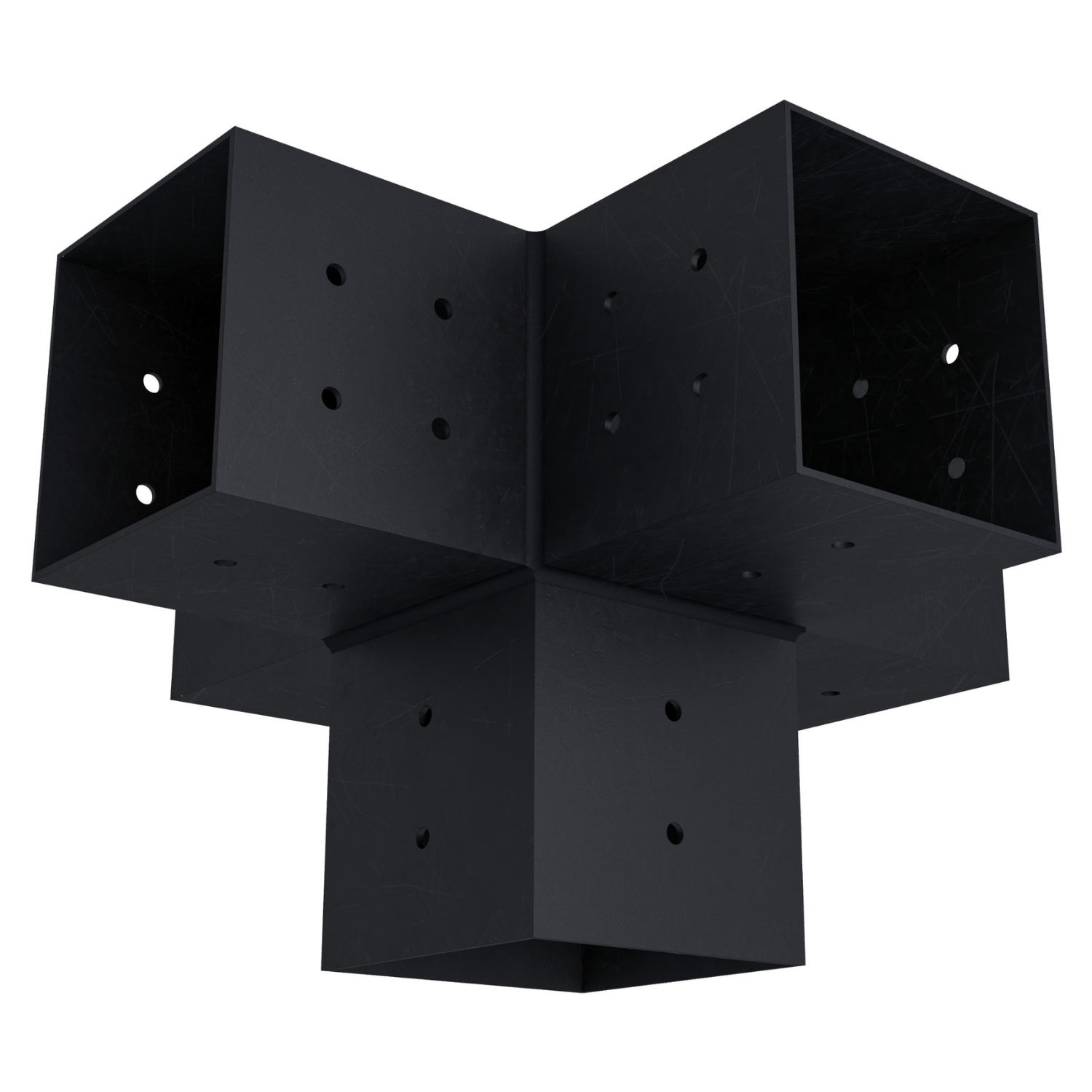

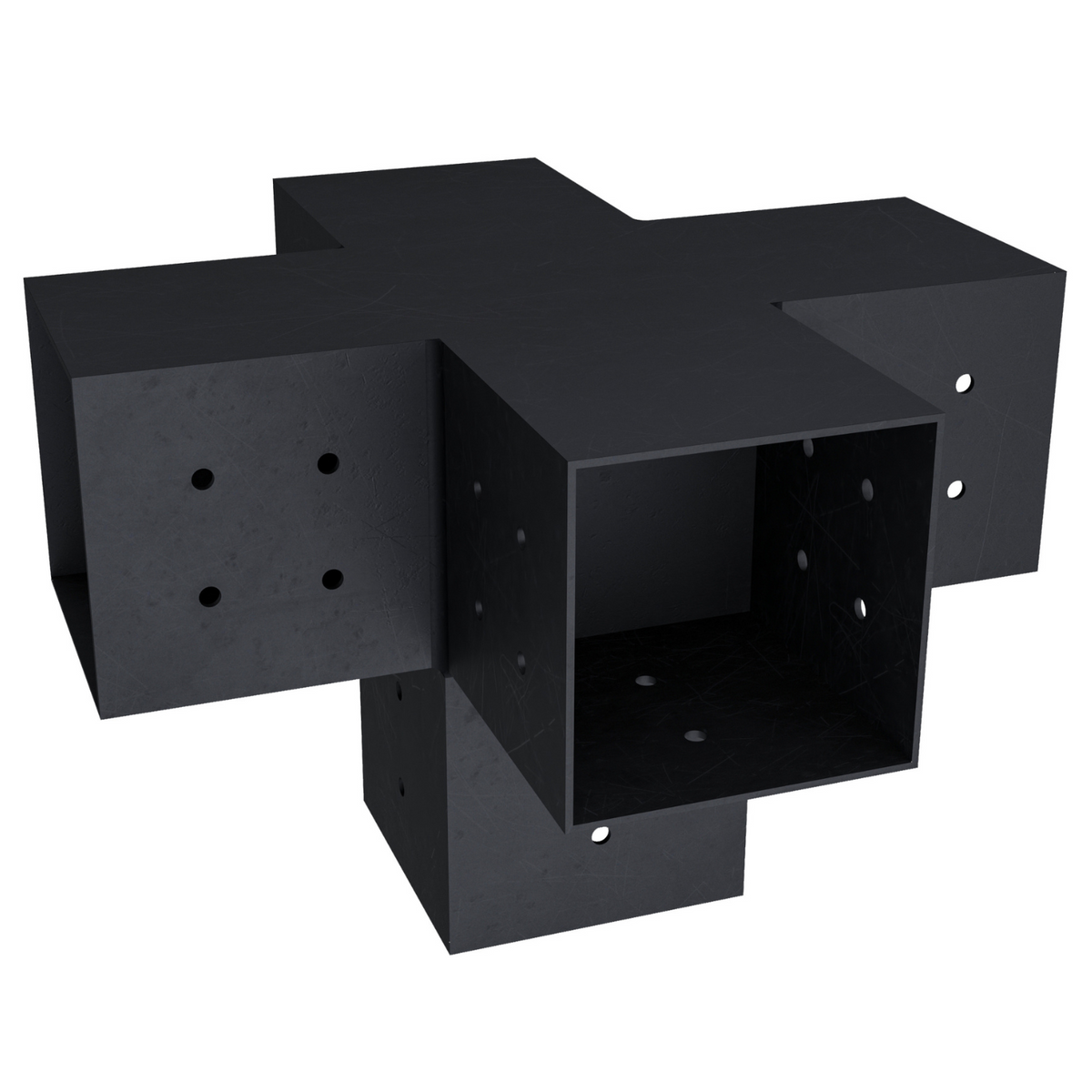

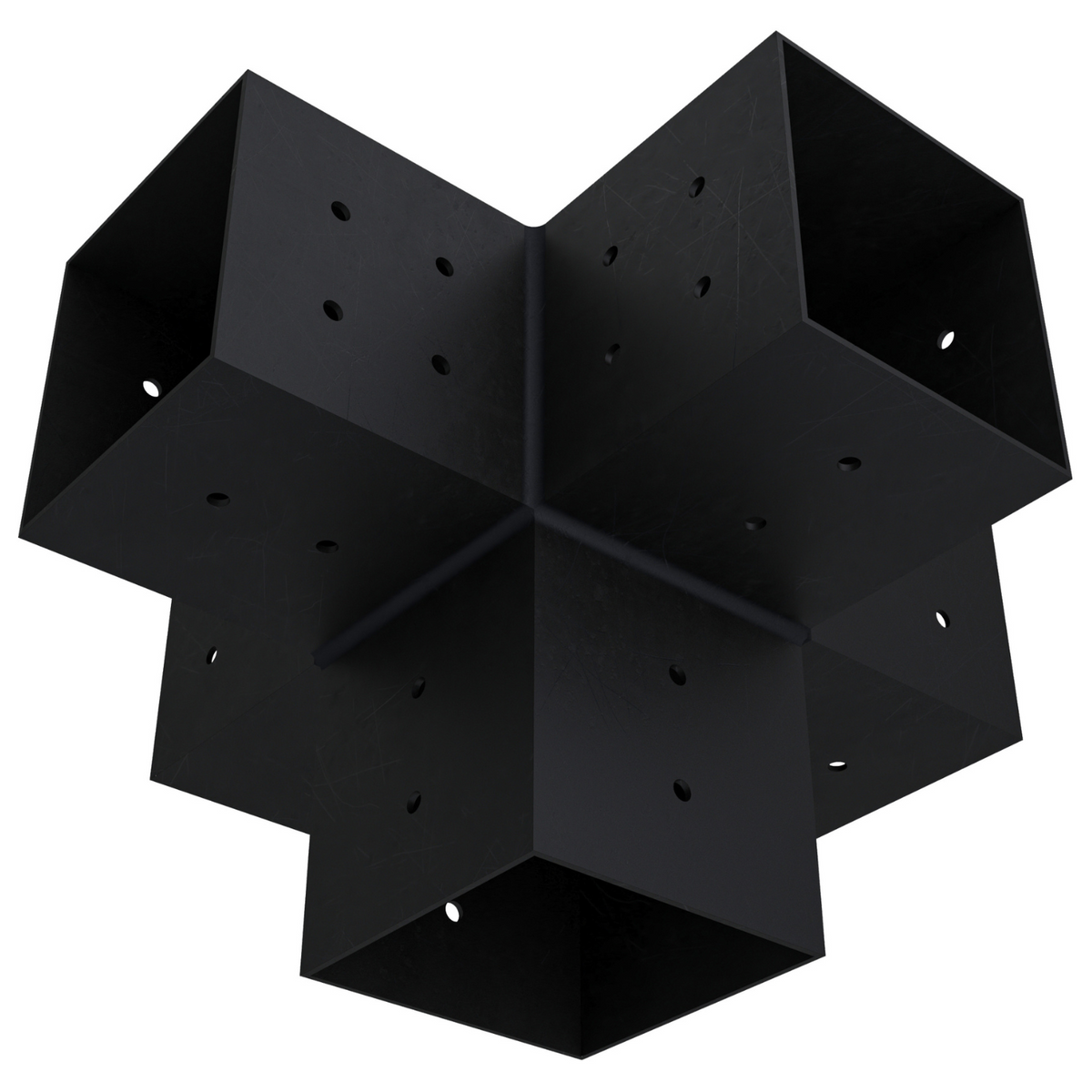

Steel Pergola 5-Arm Post Bracket for 4x4 Wood Posts by Zen Pergolas
Pergola 5-Arm Post Bracket (for 4x4 Wood Posts)
Pergola 5-Arm Post Bracket (for 4x4 Wood Posts)
Pergola 5-Arm Post Bracket (for 4x4 Wood Posts)

Vendor:Zen Pergolas

Pergola 5-Arm Post Bracket (for 4x4 Wood Posts)

Sale price$169.00Regular price $209.00

The Pergola 5-Arm Post Bracket is designed specifically for connecting 4x4 wood posts in larger pergola structures where both the width and depth exceed 12 feet. Crafted from 14-gauge premium steel with advanced weather coating, it simplifies and speeds up outdoor builds while ensuring strength and durability. It includes black painted stainless steel screws to secure wood posts firmly in place.

  • Fits 4x4 wood posts measuring 3.5" x 3.5"
  • Five arms (one vertical, four horizontal) for post and beam connections
  • Pre-drilled holes for fast and precise assembly
  • Weather-coated 14-gauge steel resists extreme outdoor conditions
  • Reduces pergola build time by up to 75%

Efficient Post Connections

Simplify Your Large Pergola Assembly

Strong Steel Build

Exact Specs and Fit

Brand or supplier
Zen Pergolas
Product type
Garden Arches, Trellises, Arbors & Pergolas
Material
14-gauge steel (~2.0mm thick)
Finish
Advanced weather coating
Compatible post size
3.5 x 3.5 inches (4x4 wood posts)
Dimensions
Width 11.25", Depth 11.25", Height 7.5"
Number of arms
5 (1 vertical + 4 horizontal)
Weight
5.875 pounds
Includes
Stainless steel black painted pan/round head #10 self-tapping screws (1.5 inch)
Pre-drilled hole size
0.25 inch

What arrives

One Pergola 5-Arm Post Bracket (for 4x4 Wood Posts) in the selected option unless the product page clearly lists a set or kit.
Props and styling accessories shown in photos are not included.

Designed for 4x4 Wood Posts

Precise Compatibility Ensures Stability

Confirm lumber size, layout, mounting surface, and required fasteners before using Pergola 5-Arm Post Bracket (for 4x4 Wood Posts).
Install according to the supplier's instructions and local structural requirements.

Brackets fit posts sized 3.5 x 3.5 inches with pre-drilled holes for screws

Compatible only with matching post or rafter sizes, layout type, fasteners, and installation surfaces. Check local codes and structural needs before building.

Always follow the manufacturer's care, use, and safety guidance.

Supportive Service

Shipping and Returns

Shipping rates and delivery estimates appear at checkout

Shipping rates and estimated delivery times are shown at checkout.

Accepts returns within 30 days; contact Resin Society first for issues

Return requests are accepted within 30 days of delivery.
Contact Resin Society first for damaged, defective, incorrect, or missing items and we will coordinate directly with Zen Pergolas.
Steel Pergola 5-Arm Post Bracket for 4x4 Wood Posts by Zen Pergolas

Center of the gathering

A quiet cross of matte black steel that holds space for shade, conversation, and long summer dinners.

Make room

Where big porches begin

Calm strength

Large pergolas often stall at the middle—where beams, posts, and plans meet.
The Pergola 5-Arm Post Bracket (for 4x4 Wood Posts) resolves the crossroads with a single, precise form.
Laser-cut 14‑gauge steel, pre-drilled, and ready with stainless screws, it brings order to complex spans over 12 feet.

A single, certain connection

When the center holds, the rest follows.
This five‑arm hub lands cleanly on a 4x4 post and receives four beams with measured alignment, so the frame feels composed from the first turn of a screw.
Weather-ready coating and a considered layout let the structure age with the garden—not the hardware.

For the builder at home

Homeowners and makers extending a pergola beyond 12 feet in both directions who want a crisp, reliable center junction.

In practice

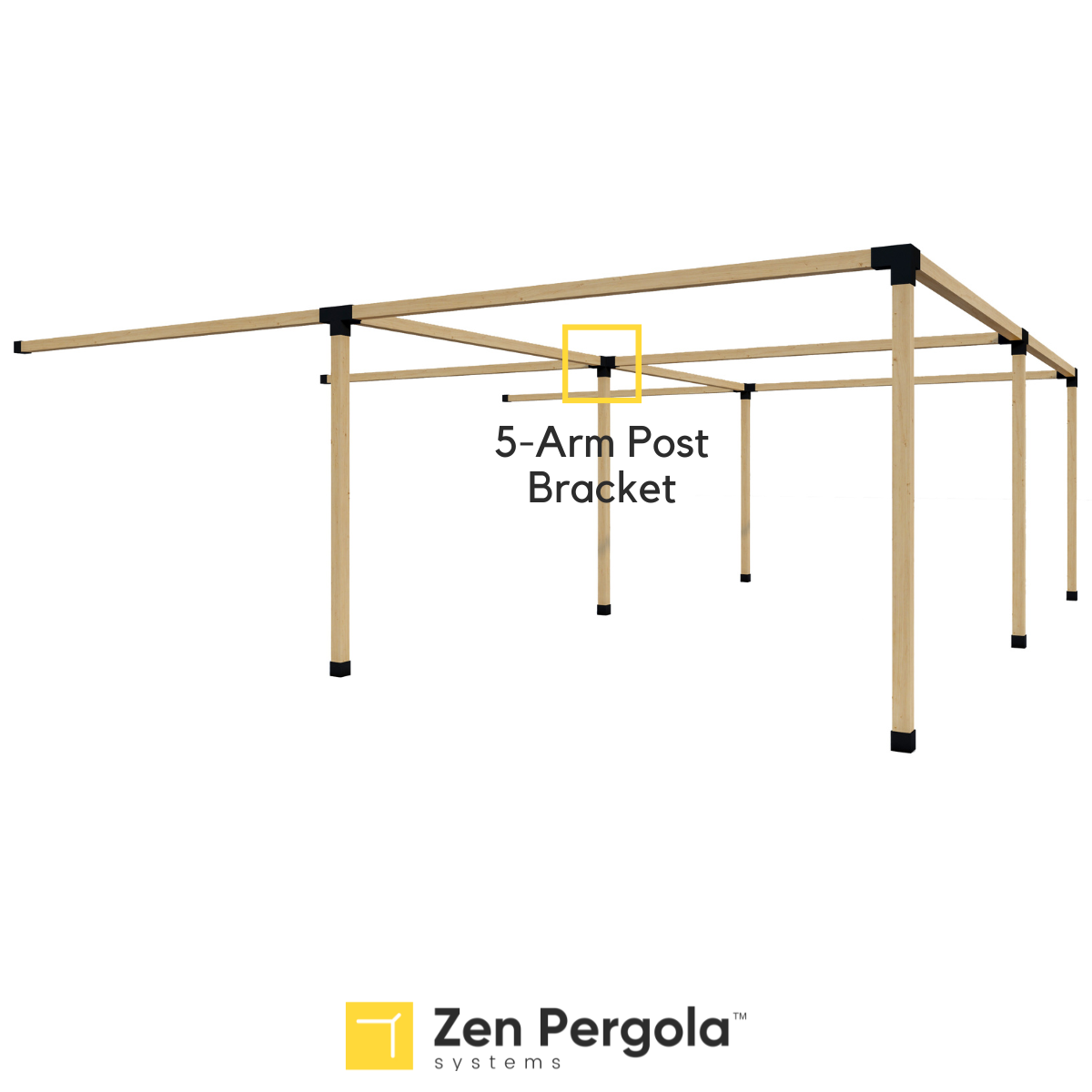

Set this bracket at the central post of a large freestanding or attached pergola to join four 4x4 beams and the vertical support in one aligned, secure point.
  • Pergolas
  • Outdoor builds
  • Post connections
  • Hammocks and swings
  • DIY structures
Zen Pergolas brand cover

Maker Profile

Zen Pergolas Hardware Specialists

Zen Pergolas supplies pergola brackets, outdoor structure hardware, and wood-post support pieces from Idaho Falls, ID, specializing in modern DIY pergolas designed for easy builds, clean style, and lasting comfort. Their parts are aimed at builders and homeowners who want to create a backyard retreat with straightforward components that simplify patio structures and garden-adjacent builds. If you’re planning a tidy outdoor wood project—whether a compact shade structure over a deck or a larger pergola for entertaining—Zen Pergolas focuses on practical hardware that lets quality design read through the details. These solutions make structural choices feel intentional and accessible, so the finished outdoor living space looks composed and performs reliably.
Explore Zen Pergolas
93trees planted to date

Your order gives back

When you buy from Resin Society, you help plant trees through our reforestation partnership. It is a small way your order supports the materials, homes, and landscapes makers care about.

Your Questions Answered

Pergola 5-Arm Post Bracket FAQs

When should I use a 5-arm bracket instead of standard corners?
Use it when both the width and depth of your pergola exceed 12 feet and you have a center post on each side; this bracket sits at the middle to join the four beams and the vertical post.
What size lumber fits the arms?
Each arm is sized for dressed 4x4 posts with actual dimensions of 3.5 x 3.5 inches.
Does it include the hardware I need to fasten the wood?
Yes.
It includes black-painted stainless steel #10 self-tapping wood screws, 1.5 inches long, for securing wood to the bracket.
How is it finished for the outdoors?
The bracket is made from 14‑gauge steel with an advanced weather coating designed to withstand extreme outdoor conditions.
What are the key dimensions?
Overall width and depth are 11.25 inches each, height is 7.5 inches, and the unit weighs about 5.875 pounds.
Each arm has pre-drilled holes sized for #10 screws.
