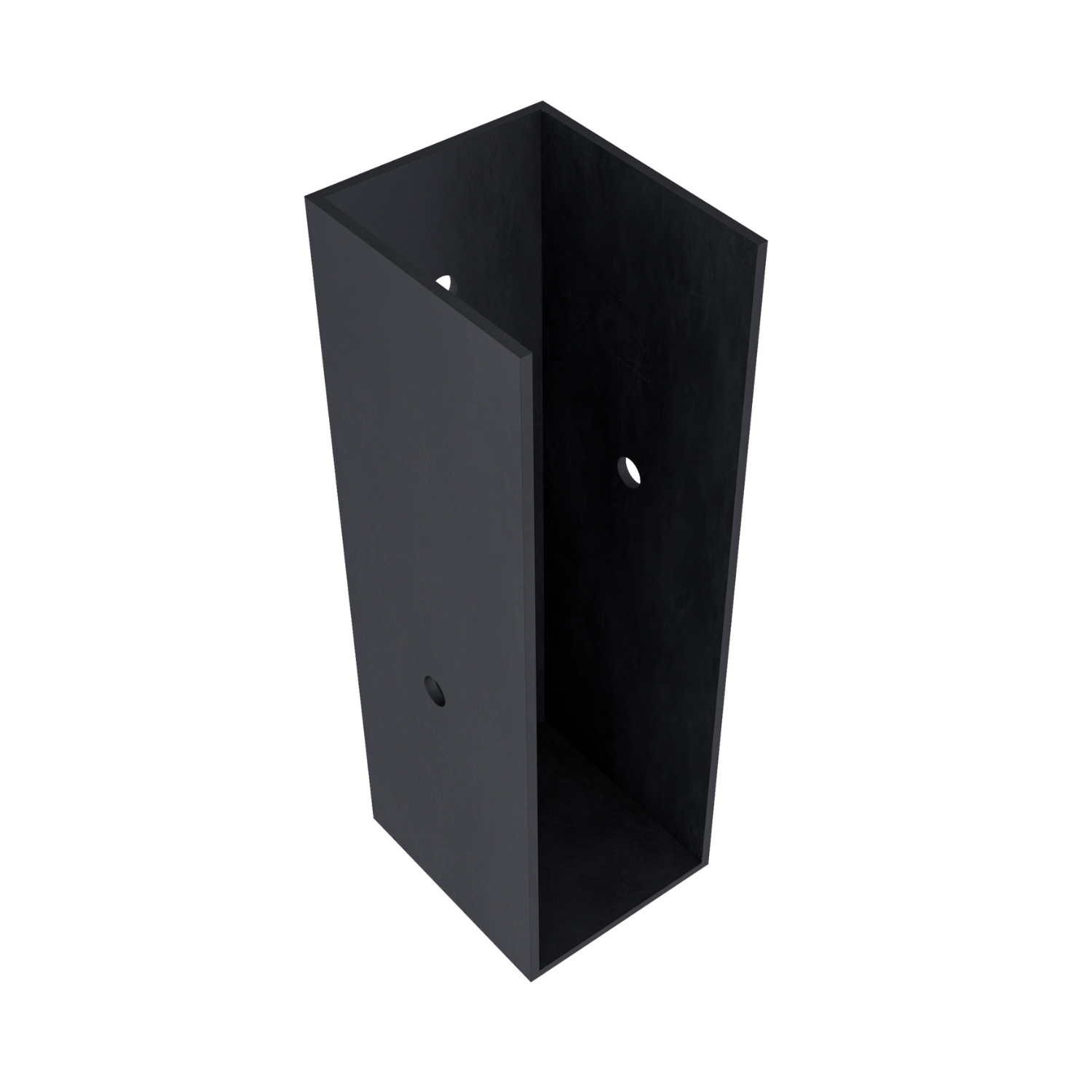

Metal Pergola Insert Bracket designed for 2x6 wood slats with pre-drilled holes and black screws
Pergola Insert Bracket (for 2x6 Wood Slats)
Pergola Insert Bracket (for 2x6 Wood Slats)
Pergola Insert Bracket (for 2x6 Wood Slats)
Pergola Insert Bracket (for 2x6 Wood Slats)
Pergola Insert Bracket (for 2x6 Wood Slats)
Pergola Insert Bracket (for 2x6 Wood Slats)
Pergola Insert Bracket (for 2x6 Wood Slats)
Pergola Insert Bracket (for 2x6 Wood Slats)
Pergola Insert Bracket (for 2x6 Wood Slats)

Vendor:Zen Pergolas

Pergola Insert Bracket (for 2x6 Wood Slats)

Sale price$19.00Regular price $25.00

The Pergola Insert Bracket from Zen Pergolas is crafted from 14-gauge steel and designed to insert 2x6 wood slats flush between two existing posts at any angle between -45 and 45 degrees. Its laser-cut and welded construction includes pre-drilled holes and stainless steel screws for easy installation. The bracket’s weather-resistant coating ensures durability for outdoor use, making it suitable for pergola roofs, privacy walls, and side railings.

  • Fits 2x6 wood slats (actual size 1.5” x 5.5”)
  • Flexible slat angles from -45 to 45 degrees
  • Includes black stainless steel screws for mounting wood
  • Weather coated steel for outdoor durability
  • Backed by a 5-year warranty

A versatile, sturdy connection for outdoor wood builds

Buy the Pergola Insert Bracket for precise 2x6 wood slat installation

Exact specs and features

Product Details

Brand or supplier
Zen Pergolas
Product type
Garden Arches, Trellises, Arbors & Pergolas
Material
14-gauge steel (~2.0mm thick)

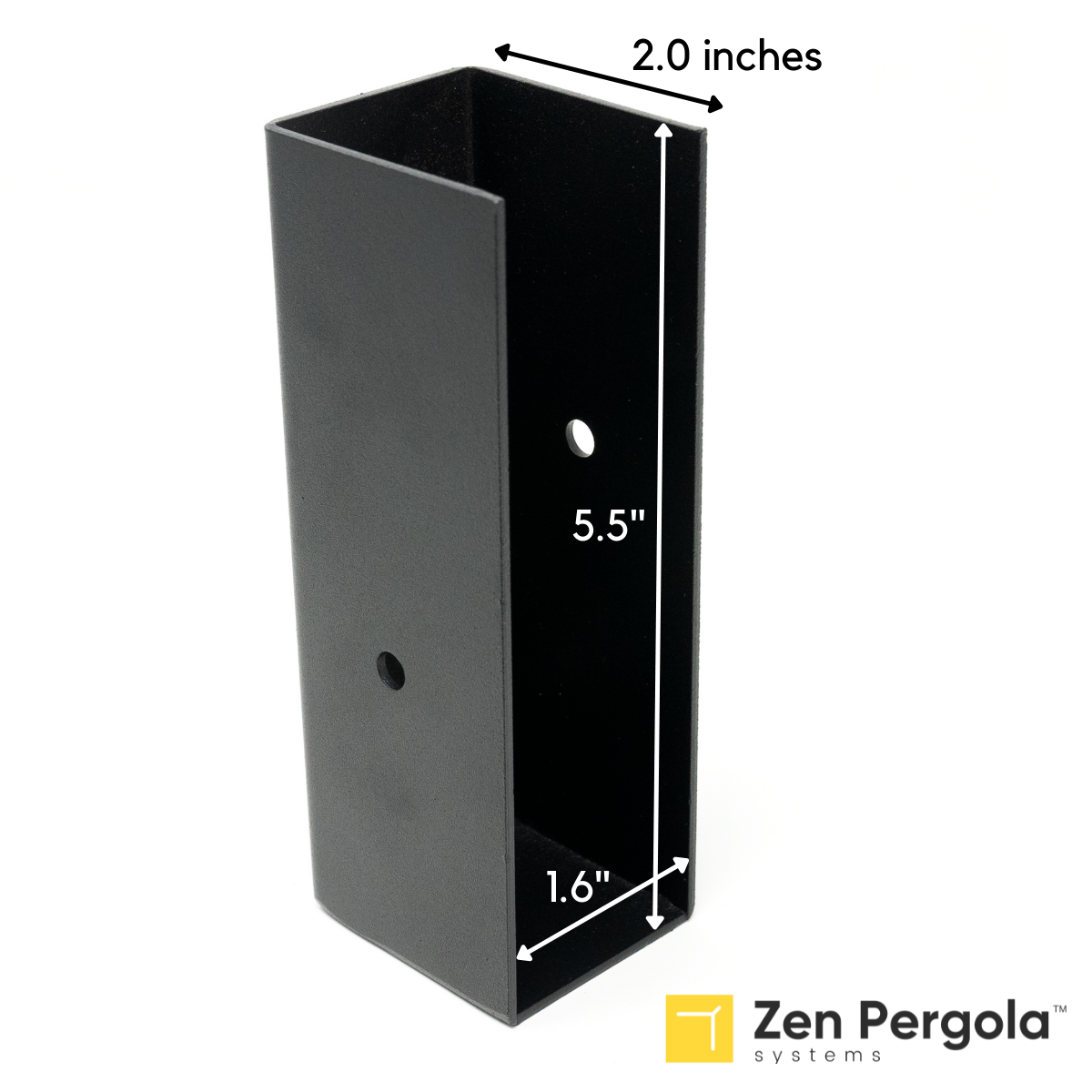

Dimensions
Width 1.75 in (44.5 mm), Depth 2.0 in (51 mm), Height 5.55 in (141 mm)
Sleeve inner dimensions
1.6 x 5.5 in (41 x 139 mm)
Pre-drilled hole size
0.25 in (6.35 mm) for #10 screws
Weight
0.75 pound
Includes
Black stainless steel screws (1.5-inch #10 self-tapping wood screws with pan/round head)
Finish
Weather coating for extreme conditions
Made for 2x6 wood (actual size 1.5" x 5.5")

What arrives

One Pergola Insert Bracket (for 2x6 Wood Slats) in the selected option unless the product page clearly lists a set or kit. Props and styling accessories shown in photos are not included.

Fits 2x6 wood slats and common outdoor structures

Dimensions and Compatibility

Confirm lumber size, layout, mounting surface, and required fasteners before using Pergola Insert Bracket (for 2x6 Wood Slats). Install according to the supplier's instructions and local structural requirements.

For 2x6 wood (1.5” x 5.5”) slats between posts

Compatible only with matching post or rafter sizes, layout type, fasteners, and installation surfaces. Check local codes and structural needs before building.

Always follow the manufacturer's care, use, and safety guidance.

Shipping and Returns information

Order and Delivery

Shipping Rates and Timing

Shipping rates and estimated delivery times are shown at checkout.

Returns and Warranty

Return requests are accepted within 30 days of delivery. Contact Resin Society first for damaged, defective, incorrect, or missing items and we will coordinate directly with Zen Pergolas.
Metal Pergola Insert Bracket designed for 2x6 wood slats with pre-drilled holes and black screws

Quiet strength, clean lines

A slim, black sleeve that lets 2x6 slats drop in from above, locking them flush between existing posts. The look is spare and architectural; the feeling is calm shade and ordered light.

Make space, simply

The bracket that draws a room in the open air

Inline made effortless

Pergolas often stall at the joinery—measuring, holding, fastening, all while fighting gravity. The Pergola Insert Bracket (for 2x6 Wood Slats) fixes the moment of hesitation: mount first, then slide the slat in from above. Its open-top design welcomes the board and keeps it flush with the posts, straight or angled as needed. What was fussy becomes a clean, repeatable rhythm.

From posts to a place

Angle shade purlins between -45° and 45° to tune light over the table where mornings stretch and evenings linger. Pre‑drilled holes and included #10 stainless screws turn each connection into a sure decision. Premium 14‑gauge steel with a weather coating stands quietly in all seasons, so the structure fades and the gathering shows.

For the builder who hosts

Homeowners and pros shaping pergolas, privacy walls, or rail details with 2x6 lumber and a clean, inline look.

How it’s used

Secure the brackets to existing posts or beams, then drop a 2x6 slat into the open-top sleeve to create inline rafters, angled purlins, privacy walls, or side railings.
  • Pergolas
  • Outdoor builds
  • Post connections
  • Hammocks and swings
  • DIY structures
Zen Pergolas brand cover

About the maker

Zen Pergolas Overview

Zen Pergolas supplies pergola brackets, outdoor structure hardware, and wood-post support pieces from Idaho Falls, ID, specializing in modern DIY pergolas designed for easy builds, clean style, and lasting comfort. Their parts are aimed at builders and homeowners who want to create a backyard retreat with straightforward components that simplify patio structures and garden-adjacent builds. If you’re planning a tidy outdoor wood project—whether a compact shade structure over a deck or a larger pergola for entertaining—Zen Pergolas focuses on practical hardware that lets quality design read through the details. These solutions make structural choices feel intentional and accessible, so the finished outdoor living space looks composed and performs reliably.
Explore Zen Pergolas
93trees planted to date

Your order gives back

When you buy from Resin Society, you help plant trees through our reforestation partnership. It is a small way your order supports the materials, homes, and landscapes makers care about.

Need to know more?

Pergola Insert Bracket FAQs

Will my 2x6 fit inside the bracket?
Yes. It’s made for dressed 2x6 lumber, which measures about 1.5 x 5.5 inches; the inner sleeve is 1.6 x 5.5 inches.
Can I set the slats at an angle for shade?
Yes. You can orient the bracket so the slat sits anywhere between -45° and 45°.
What hardware comes with it?
Stainless steel #10 self-tapping wood screws, 1.5-inch length, with black pan/round heads are included for securing wood to the bracket.
How is the bracket finished for weather?
It features an advanced weather coating designed to withstand extreme outdoor conditions.
What are the bracket’s key dimensions and weight?
Overall size is 1.75 in W x 2.0 in D x 5.55 in H, with 0.25 in pre-drilled holes; each bracket weighs about 0.75 lb.
