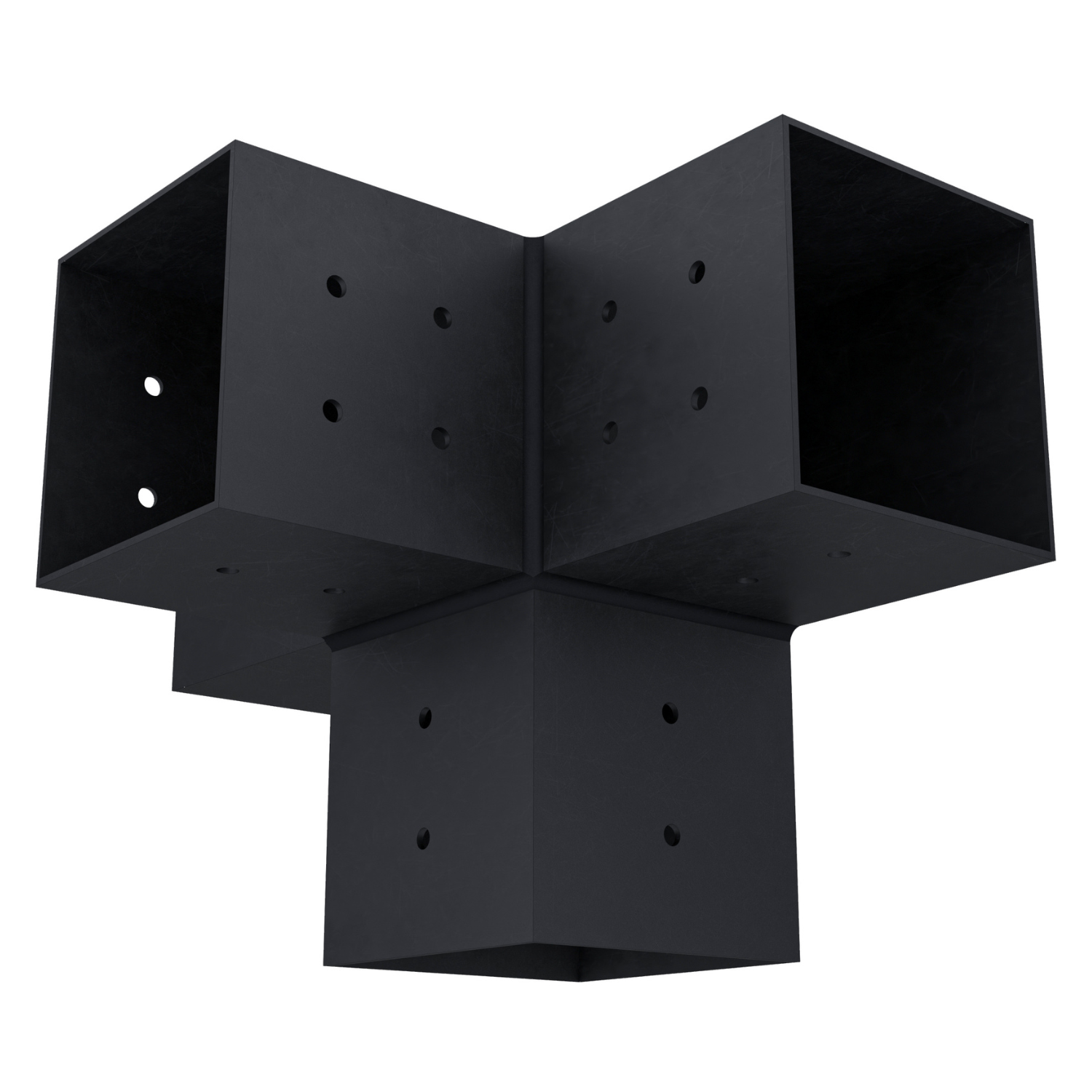

Pergola 4-Arm Post Bracket made of steel for 4x4 wood posts with included black screws
Pergola 4-Arm Post Bracket (for 4x4 Wood Posts)
Pergola 4-Arm Post Bracket (for 4x4 Wood Posts)
Pergola 4-Arm Post Bracket (for 4x4 Wood Posts)
Pergola 4-Arm Post Bracket (for 4x4 Wood Posts)

Vendor:Zen Pergolas

Pergola 4-Arm Post Bracket (for 4x4 Wood Posts)

Sale price$129.00Regular price $159.00

The Pergola 4-Arm Post Bracket is engineered to connect 4x4 wood posts in pergola builds, especially where extra width or depth exceeds 12 feet. Crafted from 14-gauge steel with a weather-resistant finish, it supports strong, clean connections suitable for outdoor structures. The bracket includes pre-drilled holes and stainless steel screws, facilitating efficient assembly and durability.

  • Fits 4x4 dressed lumber (3.5" x 3.5") post size
  • Constructed from 14-gauge (~2.0mm thick) premium steel
  • Weather coating designed for extreme outdoor conditions
  • Includes black painted stainless steel self-tapping screws
  • Reduces build time by up to 75% with precise connections
  • Backed by a 5-year warranty from Zen Pergolas

Clear fit and function

Designed for 4x4 Wood Posts

Solid steel build

Bracket Details and Specifications

Brand or supplier
Zen Pergolas
Product type
Garden Arches, Trellises, Arbors & Pergolas
Material
14-gauge steel (~2.0mm thick)
Fits post size
4x4 wood posts (3.5" x 3.5")
Weather coating
Advanced technology for extreme conditions
Weight
5.0 pounds
Dimensions
Width 11.25" (286 mm), Depth 7.5" (190.5 mm), Height 7.5" (190.5 mm)
Pre-drilled holes
Hole size 0.25" (6.35 mm) for #10 screws
Hardware included
Stainless steel 1.5-inch #10 self-tapping wood screws (painted black)
Number of arms
4 (1 vertical + 3 horizontal)

What arrives

One Pergola 4-Arm Post Bracket (for 4x4 Wood Posts) in the selected option unless the product page clearly lists a set or kit. Props and styling accessories shown in photos are not included.

Exact sizing

Dimensions and Compatibility

Confirm lumber size, layout, mounting surface, and required fasteners before using Pergola 4-Arm Post Bracket (for 4x4 Wood Posts). Install according to the supplier's instructions and local structural requirements.

Fits standard 4x4 wood posts (3.5” x 3.5” actual)

Compatible only with matching post or rafter sizes, layout type, fasteners, and installation surfaces. Check local codes and structural needs before building.

Always follow the manufacturer's care, use, and safety guidance.

Reliable delivery and returns

Shipping and Returns

Shipping

Shipping rates and estimated delivery times are shown at checkout.

Returns

Return requests are accepted within 30 days of delivery. Contact Resin Society first for damaged, defective, incorrect, or missing items and we will coordinate directly with Zen Pergolas.
Pergola 4-Arm Post Bracket made of steel for 4x4 wood posts with included black screws

Quiet strength, open sky

A clean, black 4-arm junction that disappears into shadow while your pergola frames the light.

Make room to gather

The corner that holds the whole evening

Four arms, one intent

Big pergolas ask for certainty. The Pergola 4-Arm Post Bracket (for 4x4 Wood Posts) meets extra-wide or extra-deep spans with a calm, square geometry that keeps lines true. Pre-drilled holes and included #10 stainless screws turn a complex joint into a clear, orderly task. The result: a faster build and fewer second guesses.

Space opens up

When width or depth moves past 12 feet, gatherings grow with it—more shade, more table, more voices. This 14‑gauge steel bracket links posts and beams so the structure reads as one piece, weather after weather. Its dark finish recedes, leaving only the rhythm of wood and the comfort beneath.

For builders of lived-in yards

Homeowners extending a freestanding or attached pergola beyond 12 feet who want a crisp, durable joint for 4x4 dressed lumber.

How it’s put to work

Seat dressed 4x4 posts and beams into the four arms, then fasten through the pre-drilled 0.25-inch holes with the included #10 stainless screws.
  • Pergolas
  • Outdoor builds
  • Post connections
  • Hammocks and swings
  • DIY structures
Zen Pergolas brand cover

About the maker

Zen Pergolas

Zen Pergolas supplies pergola brackets, outdoor structure hardware, and wood-post support pieces from Idaho Falls, ID, specializing in modern DIY pergolas designed for easy builds, clean style, and lasting comfort. Their parts are aimed at builders and homeowners who want to create a backyard retreat with straightforward components that simplify patio structures and garden-adjacent builds. If you’re planning a tidy outdoor wood project—whether a compact shade structure over a deck or a larger pergola for entertaining—Zen Pergolas focuses on practical hardware that lets quality design read through the details. These solutions make structural choices feel intentional and accessible, so the finished outdoor living space looks composed and performs reliably.
Explore Zen Pergolas
93trees planted to date

Your order gives back

When you buy from Resin Society, you help plant trees through our reforestation partnership. It is a small way your order supports the materials, homes, and landscapes makers care about.

Answers to your questions

Pergola 4-Arm Post Bracket FAQs

When do I need a 4-arm bracket instead of other connectors?
Use it when your pergola’s width or depth exceeds 12 feet or when connecting two sections; freestanding builds typically use more of these than attached builds.
What lumber size fits this bracket?
It’s made for dressed 4x4 wood posts, which measure approximately 3.5 x 3.5 inches.
Are the screws included?
Yes. It includes black-painted #10 stainless steel self-tapping wood screws, 1.5 inches long.
How is the bracket constructed?
It’s laser-cut, bent, and welded from premium 14‑gauge steel with an advanced weather coating.
What are the overall dimensions and weight?
It measures 11.25 inches wide, 7.5 inches deep, and 7.5 inches high, weighs about 5.0 pounds, and features four arms—one vertical and three horizontal.
